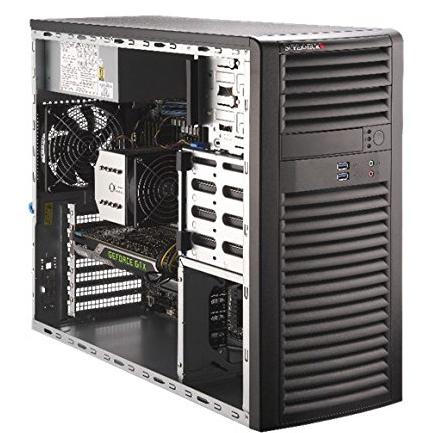

Supermicro 5039A-I Mid-Tower Server

Mid‑tower workstation built around Intel C422 chipset with LGA 2066 socket, offering eight DDR4 slots for up to 512 GB, 900 W Gold PSU, dual 120 mm fans, 7.1 audio, three PCIe x16, six SATA III, two M.2, UEFI BIOS and ECC memory support.

Brand: Supermicro
Model: SYS-5039A-I
MPN: SYS-5039A-I
Sponsored  This site contains affiliate links for which we may receive compensation. More information
80 PLUS certification 80 PLUS Gold
AC input frequency 50/60
AC input voltage 100 - 240
ACPI version 3.0
Audio output channels 7.1 channels
Audio system Realtek ALC1220
BIOS memory size 256 MB
BIOS type UEFI
Built-in processor No
Certification RoHS
Chassis type Midi-Tower
Colour Black
COM ports quantity 1
Cooling type Active
Depth 20.7" (525.3 mm)
ECC Yes
Ethernet LAN Yes
Ethernet LAN ports 2
Height 16.7" (424 mm)
Internal USB 2.0 ports quantity 4
LAN controller AQtion AQC108,Intel I219LM
LED indicators HDD, Network, Power, System
Maximum internal memory 512 GB
Memory slots type DIMM
Microphone in Yes
Motherboard form factor ATX
Number of memory slots 8
Number of SATA III connectors 6
On-board graphics adapter No
On/off switch Yes
Operating relative humidity 8 - 90%
PC health monitoring CPU, Fan, Temperature
PCI Express x16 slots 3
Power supply 900 W
Power Supply Type Internal power supply unit
Processor socket LGA 2066
RAID levels 0, 1, 5, 10
Rear fans diameters supported 120 mm
Rear fans installed 1x 120 mm
Storage drive sizes supported 3.5,5.25"
Storage relative humidity 5 - 95%
Supported memory clock speeds 2133,2400,2666 MHz
Supported storage drive types HDD
System management BIOS SMBIOS version 2.7
Thermal design power 140 W
Weight 35.5 lbs (16.1 kg)
Wi-Fi No
Width 7.6" (193 mm)
