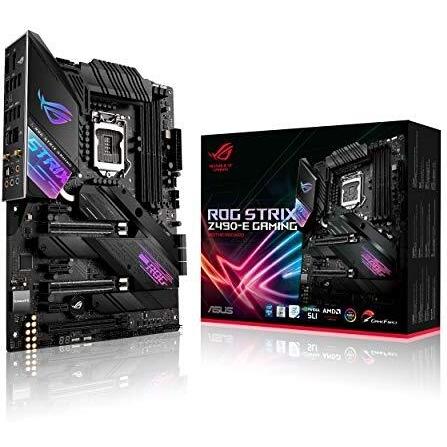

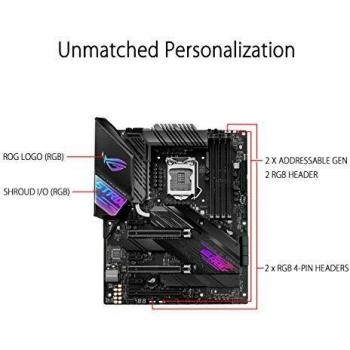

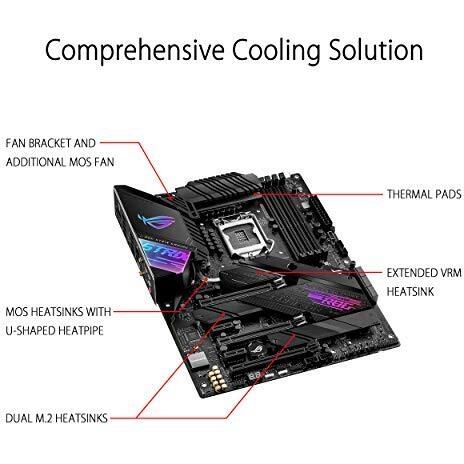

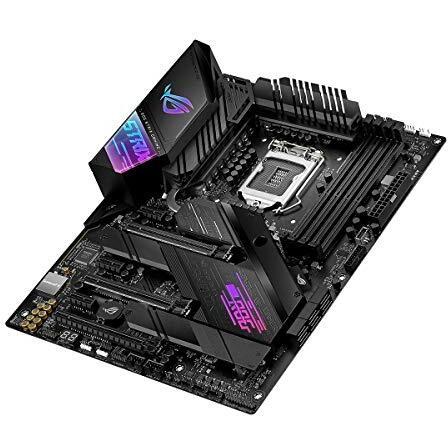

ASUS ROG Strix Z490-E Gaming ATX Mainboard

Marke: ASUS Computer
MPN: ROG STIRX Z490-E GAMING
SKU: ROG STIRX Z490-E GAMING
Gesponsert  Diese Website enthält Affiliate-Links, für die wir möglicherweise eine Vergütung erhalten. Weitere Informationen
Anzahl der M.2 M-Steckplätze 2
Anzahl der speichersteckplätze 4
Anzahl DisplayPort Anschlüsse 1
Arbeitsspeicher typ DIMM
Audio codec SupremeFX (S1220A)
Beleuchtung ja
Beleuchtungsfarbe RGB
Besonderheiten Zwei-Kanal-Speicherarchitektur
BIOS-Funktionen BIOS FlashBack, UEFI BIOS
BIOS-Typ AMI
Bluetooth-Version 5
Breite 305 mm
Chipsatz Intel Z490
CPU Sockel 1200
DisplayPorts-Version 1.4
Ethernet schnittstellen typ 2.5 Gigabit Ethernet
Formfaktor ATX
Gewicht 2,2 kg
Kompatibilität High-Definition-Audio, DTS Sound Unbound
Komponente für PC
LAN-Controller Intel I225-V
Max größe 131072 MB
Maximale auflösung 4096x2304
Mitgelieferte kabel SATA
Motherboard chipsatz familie Intel
Netzteil ATX12V (24-Pin + 8-Pin + 4-Pin)
Netzwerkschnittstellen 802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.0
Parallele Verarbeitungstechnologie 2-Way SLI,3-Way CrossFireX
PCI-Express x1 3
Produkttyp Motherboard - ATX
RAID Level 0,1,5,10
Registriert oder gepuffert Ungepuffert
SATA III Anschlüsse 6
Sleep / Wake up Wake-On-LAN (WOL), Wake On PME
Speicher maximal
Speicherkanäle Dual-channel
Stromanschlüsse ATX12V-Stecker, 4-polig, Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig
Typ HD Audio (8-Kanal)
Unterstützt Windows-Betriebssysteme Windows 10 x64
Unterstützte arbeitsspeichergeschwindigkeit 2133,2400,2666,2800,2933,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4800 MHz
Unterstützte RAM-Integritätsprüfung Non-ECC
Unterstützte speicherlaufwerke HDD & SSD
WLAN-Standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
