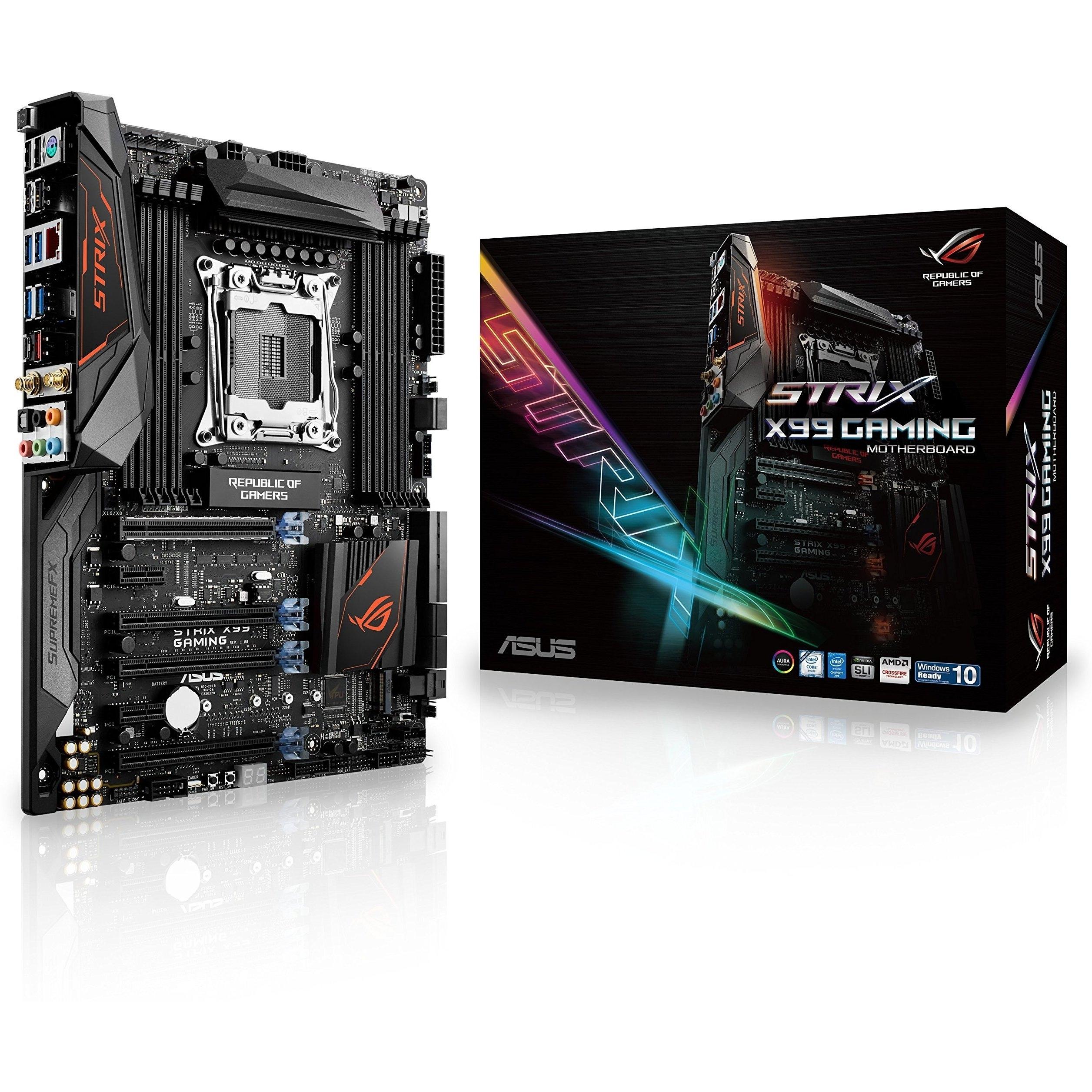

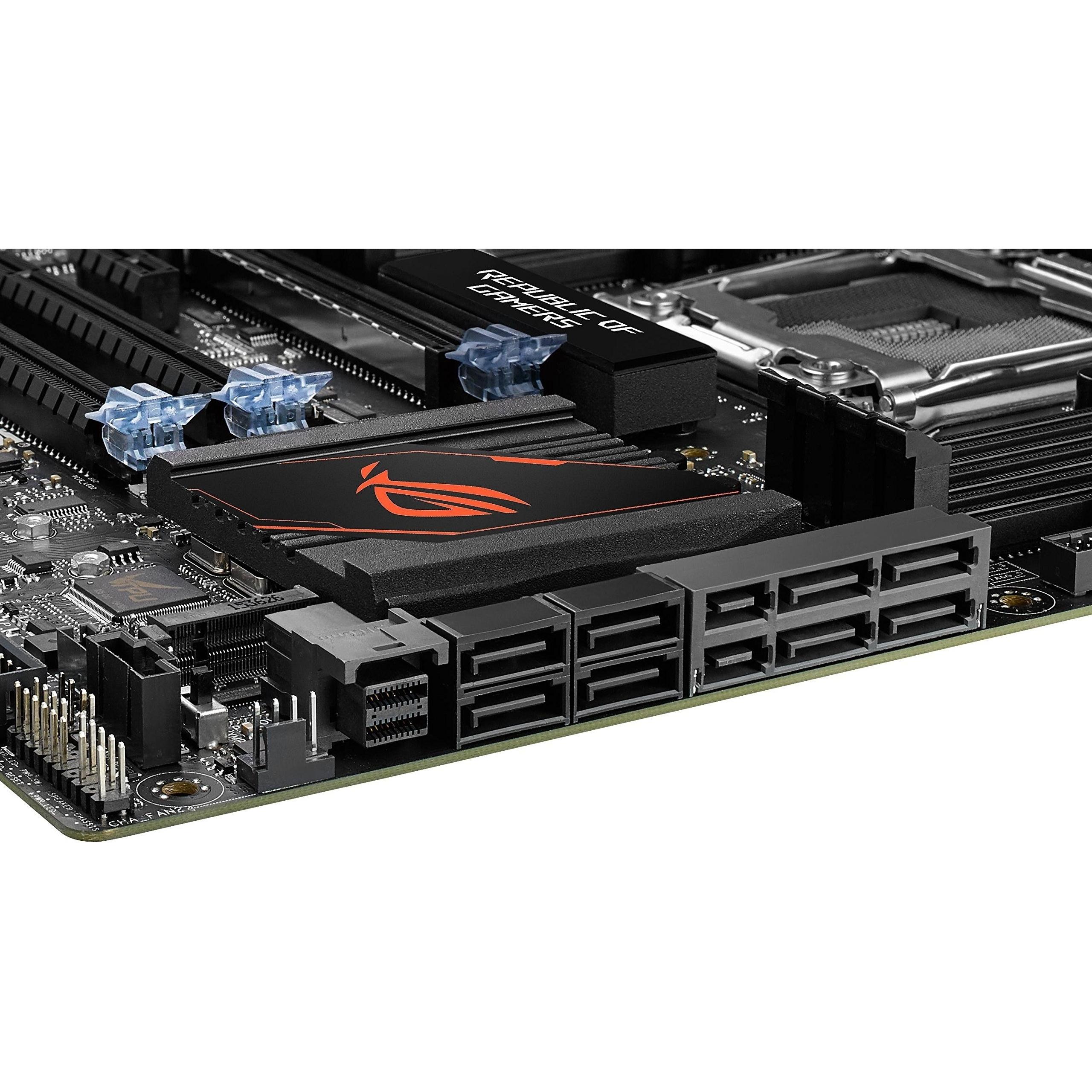

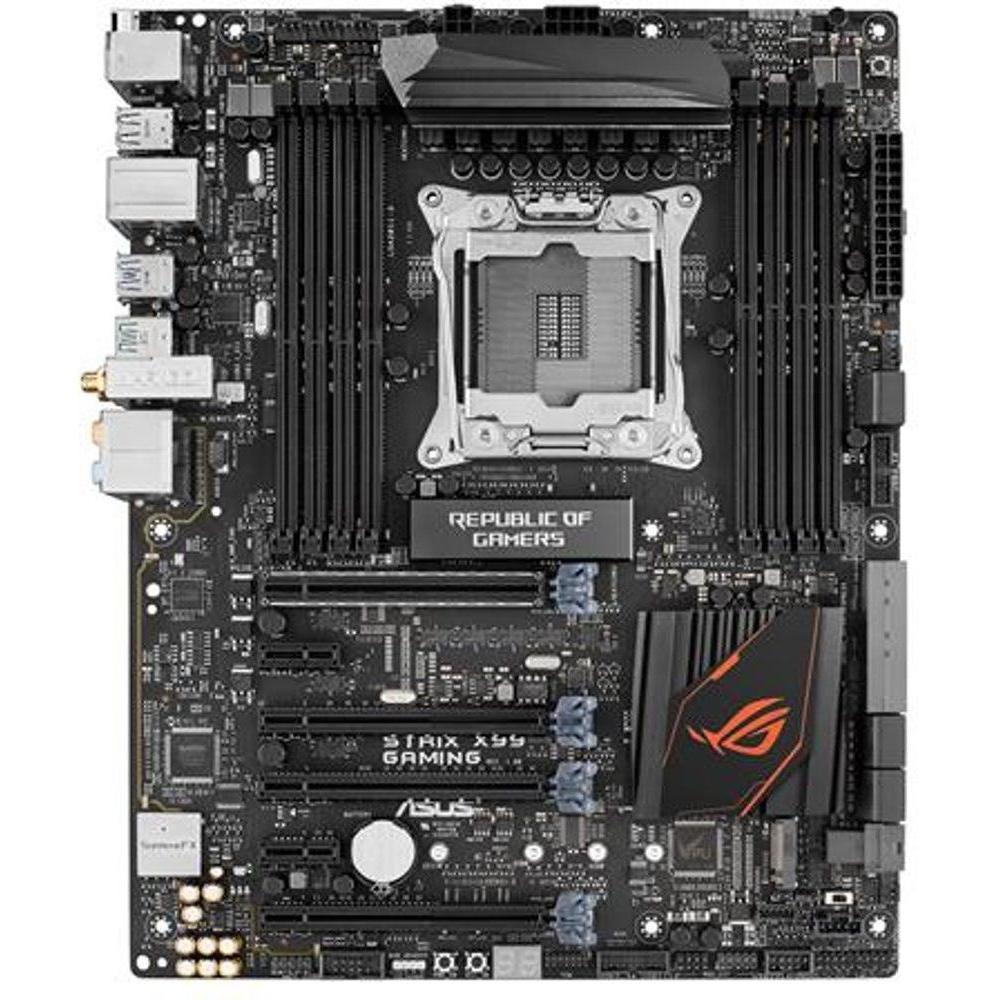

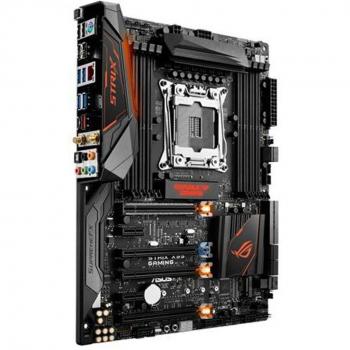

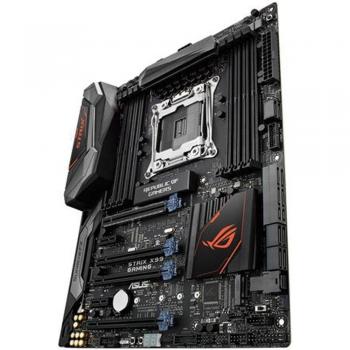

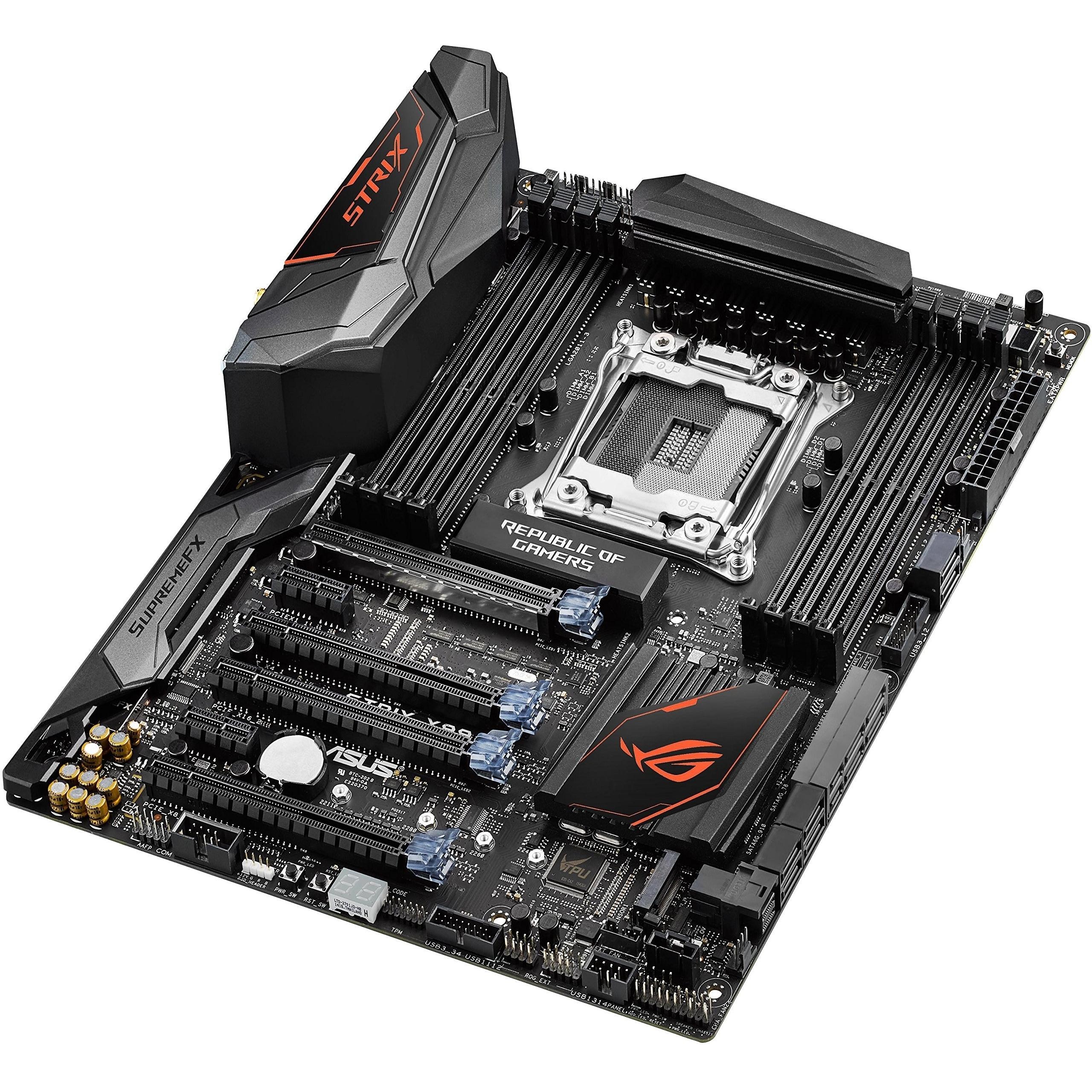

ASUS Strix X99 Intel X99 Mainboard

Ein ATX‑Mainboard mit Intel X99 Chipset, Quad‑Channel DDR4 bis 128 GB, acht SATA‑Ports, M.2 und Thunderbolt, Bluetooth 4.1 sowie 7.1‑Kanal HD Audio für Gaming und Multitasking.

Marke: ASUS Computer
Modell: STRIX X99 GAMING
MPN: STRIX X99 GAMING
Gesponsert  Diese Website enthält Affiliate-Links, für die wir möglicherweise eine Vergütung erhalten. Weitere Informationen
4-polig PWM-Lüfter 2
ACPI-Version 5.0
Anzahl der sockel 8x DDR4
Arbeitsspeicher typ DIMM
Audio HD Audio (8-Kanal)
Audio codec SupremeFX
Besonderheiten Intel Extreme Memory Profiles (XMP), Vier-Kanal-Speicherarchitektur
BIOS-Typ UEFI AMI
Bluetooth Ja
Bluetooth-Version 4.1
Breite 305 mm
Chipsatz Intel X99 Express
EFI-BIOS Ja
Eingebauter Ethernet-Anschluss Ja
Energiequelle ATX
Enthaltene kabel 4 x Serial ATA-Kabel
Ethernet schnittstellen typ Gigabit Ethernet
FireWire-Anschlüsse 1 x USB-C + 1 x USB 3.1 + 4 x USB 3.0 + 4 x USB 2.0 + (4 x USB 3.0 + 4 x USB 2.0 über Kopfzeilen)
Herstellergarantie 3 Jahre Garantie
Kompatibilität High-Definition-Audio
Kompatible prozessoren Core i7 Extreme Edition, Core i7
LAN Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
LAN-Controller Intel I218-V
Line-in 1
M.2 Länge 42 - 110 mm
M.2 Schnittstelle PCIe
M.2-Modul Key M
Max größe 128 GB
Maximale datendichte 8192 Mbit
Maximale speicherranks 16
Motherboard chipsatz familie Intel
Ohne ECC Ja
Parallele Verarbeitungstechnologie 2-Way CrossFireX,2-Way SLI,3-Way CrossFireX,3-Way SLI
Produkttyp Motherboard - ATX
Prozessorsockel 1 x LGA2011-v3-Sockel
Sleep / Wake up Wake-On-LAN (WOL), Wake On PME
Speichercontroller in CPU Ja
Speichersteckplätze 4 x SATA-600 (RAID), 4 x SATA-600, 1 x SATA Express port, 1 x M.2, 1 x U.2 port
Stromanschlüsse ATX12V-Stecker, 4-polig, Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig
Tiefe 244 mm
TPM Ja
Unterstützte standards DDR4-2133, DDR4-2666, DDR4-3333, DDR4-3000, DDR4-2800, DDR4-2400, DDR4-3300
WLAN Ja
