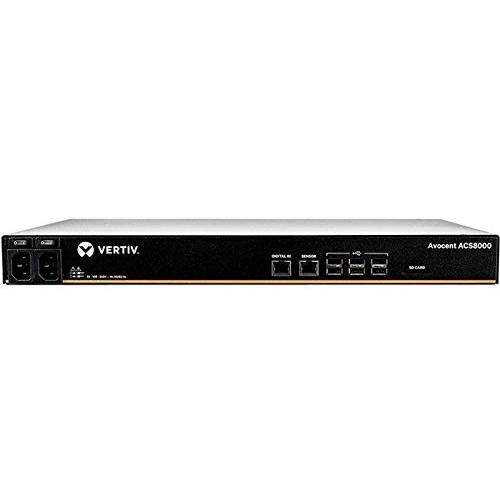

Vertiv Avocent 16PORT ACS8000 Console System with Dual AC Power Supply RS232ACS8016DAC404

3.88 EUR

A 1U console server with dual AC input, 16 serial ports, two Gigabit Ethernet links, eight USB 2.0 ports and a C13 outlet. It runs embedded Linux on an ARM Cortex‑A9, offers LDAP/RADIUS/TACACS+ authentication, 1 GB DDR3L RAM, 16 GB eMMC storage, supports Cat4–Cat7 or fiber cabling, and provides secure AES encryption for network management.

Brand: Vertiv
Model: ACS8016DAC-404
MPN: ACS8016DAC-404
SKU: ACS8016DAC-404
Sponsored  This site contains affiliate links for which we may receive compensation. More information
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
AC outlet types C13 coupler
Authentication method LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)
Cable types supported Cat4,Cat5,Cat5e,Cat6,Cat6+,Cat6a,Cat6e,Cat7,Fiber
Colour Black
Console port RJ-45
Copper ethernet cabling technology 10BASE-T,1000BASE-T,1000BASE-TX
eMMC capacity 16 GB
Ethernet LAN ports 2
Flash memory 16000 MB
Input current 0.1 A
Internal memory 1024 MB
Internal modem No
IP address filtering Yes
Management protocols CLI, HTTP/ HTTPS, SNMP
Maximum power consumption 35 W
Operating relative humidity 20 - 80 %
Operating system installed Embedded Linux
Operating temperature 10
Power consumption 20 W
Power source type AC
Processor architecture ARM Cortex-A9
RAM Type DDR3L
Safety UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
Security algorithms 3DES,128-bit AES,192-bit AES,256-bit AES,AES,FIPS 140-2,HTTPS,IPSec,SHA-256,SNMP,SNMPv3,SSH,SSH-2
Storage relative humidity 5 - 95 %
Storage temperature -20 - 70 °C
USB 2.0 ports quantity 8
