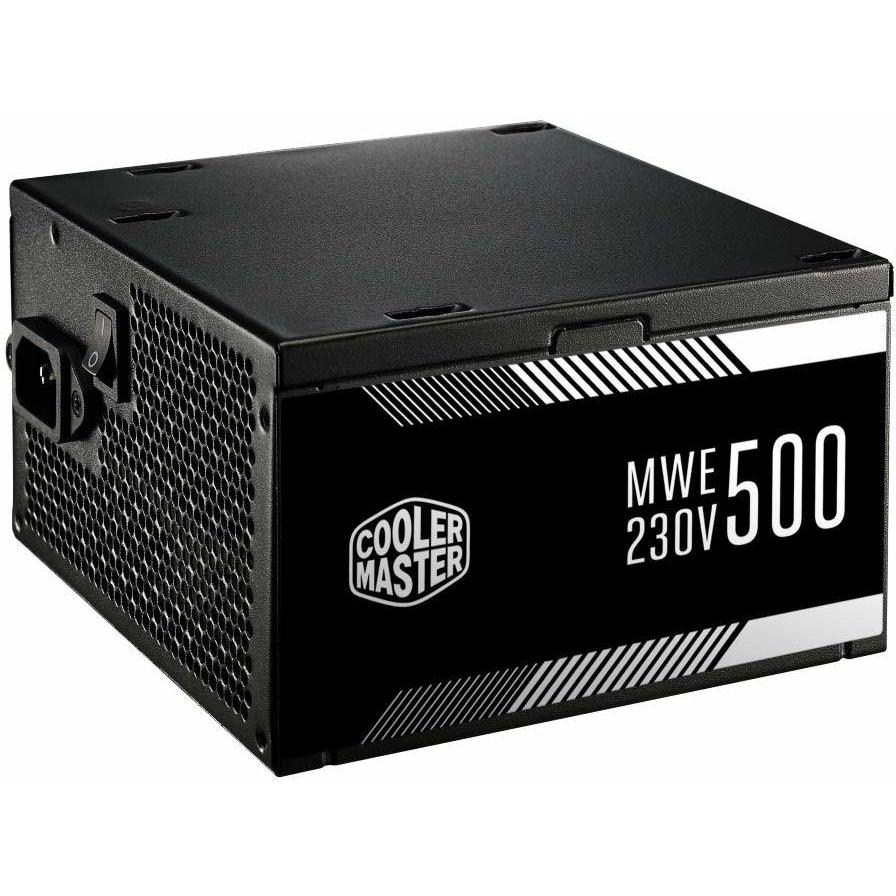

liquidgaming.co.uk | 80 PLUS certification | 80 PLUS White |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 200 - 240 V |
| ATX Power connector 24-pin | Yes |
| ATX version | 2.52 |
| Bearing technology | HDB |
| Certification | ERP 2014 LOT 3, CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB |
| Colour | Black |
| Combined power (+12V) | 492 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Connectors | 1 x 4+4-pin CPU +12V (EPS) 1 x 4-pin FDD Power 3 x 4-pin Molex 2 x 6+2-pin PCIe 6 x SATA |
| Cooling | Fan |
| Cooling type | Active |
| Depth | 86 mm |
| Dimensions | 150 x 86 x 140 mm (WxHxD) |
| Edition | MasterWatt Lite 230V (ErP 2013) |
| Efficiency | 85% |
| EPS 12V | Yes |
| Fan diameter | 12 cm |
| Fan Speed | 0 - 1500 RPM |
| Fans | 1 x 120mm |
| Height | 150 mm |
| Hold time | 14 ms |
| Input current | 5 A |
| Master outer case height | 21.5 cm |
| Master outer case length | 26 cm |
| Master outer case width | 57 cm |
| Max output current (+12V) | 41 A |
| Max output current (+3.3V) | 16 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Maximum Combined Output +12V | N/A |
| Mean time between failures | 100000 h |
| Modular | No |
| Motherboard Connector | 20+4-pin |
| Motherboard power cable length | 50 cm |
| Motherboard power connector | 24-pin ATX |
| Number of fans | 1 fan(s) |
| Number of sata power connectors | 6 |
| Operating temperature | 0 - 40 °C |
| Package depth | 190 mm |
| Package width | 245 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Power protection features | Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Quantity per pallet | 32 pc(s) |
| SATA power cable length | 400,550,700 mm |
| SLI/CrossFire | No |
| Total Power | 500 W |
| Weight | 1.34 kg |
| Width | 140 mm |
