| 80 PLUS certification | 80 PLUS Bronze |
|---|---|
| ATX version | 2.31 |
| Cabling Type | Semi-Modular |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 130 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 9.6 W |

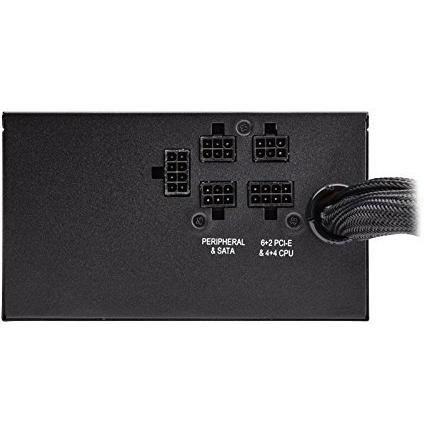

| Connectors | 1 x 4+4-pin CPU +12V (EPS) 1 x 4-pin FDD Power 3 x 4-pin Molex 4 x 6+2-pin PCIe 6 x SATA |
| Cooling | Fan |
| Edition | CX650M |
| EPS 12V | Yes |
| Fan location | Top |

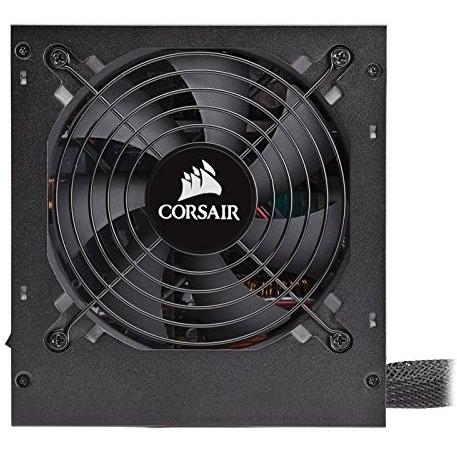

| Fans | 1 x 120mm |
| Floppy connector | 1 |
| Internal +12V Rails | Single Rail |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.8 A |
| Maximum Efficiency at 230Vac | 85 % |
| Modular | Yes |
| Modularity | Hybrid Modular |
| Motherboard Connector | 20+4-pin |
| Number of SATA connectors | 2 |
| Power supply unit (PSU) form factor | ATX |
| SLI/CrossFire | Yes |
| Sustainability certificates | RoHS |
