| Ark id | 195505 |
|---|---|
| Audio output channels | 7.1 channels |
| Bluetooth | Yes |
| Card reader integrated | Yes |
| Chassis type | UCFF |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Compatible memory cards | SDXC |
| Compatible operating systems | Windows 10, 64-bit* |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-up frequency | 2.1 GHz |
| Consumer infrared Rx sensor | Yes |
| DC input voltage | 19 V |
| DC-in jack | Yes |
| Depth | 112 mm |
| Discrete graphics adapter | No |
| Discrete graphics adapter model | Not available |
| Display included | No |
| Displayport Version | 1.2 |
| DVI port | No |
| ECC | No |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Execute disable bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Form Factor | UCFF (4" x 4") |
| Graphics output | HDMI 2.0b; USB-C (DP1.2) |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Height | 38 mm |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel flex memory access | Yes |
| Intel rapid storage technology | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel trusted execution technology | No |
| Intel TSX-NI | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Internal USB 2.0 ports quantity | 2 |
| LAN controller | Intel® I219-V |
| M.2 card slot (storage) | 2242/2280 |
| Maximum internal memory | 64 GB |
| Maximum number of PCI Express lanes | 16 |
| Maximum on-board graphics adapter memory | 32 GB |
| Memory channels | Dual-channel |
| Memory clock speed | 2666 MHz |
| Memory clock speeds supported by processor | 2666,2133 MHz |
| Microphone in | No |
| Number of displays supported | 3 |
| Number of execution units | 24 |
| On-board graphics adapter | No |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| On-board graphics adapter ID | 0x9B41 |
| On-board graphics adapter model | Intel® UHD Graphics |
| On-board graphics adapter OpenGL version | 4.5 |
| On/off button | Yes |
| Optical drive type | No |
| PCI Express configurations | 1x4,2x2,1x2+2x1,4x1 |
| PCI Express slots version | 3.0 |
| Power cord included | Yes |
| Processor ARK ID | 195436 |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 6 MB |
| Processor codename | Comet Lake |
| Processor family | 10th gen Intel® Core™ i5 |
| Processor Included | Intel® Core™ i5-10210U Processor (6M Cache, up to 4.20 GHz) |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | i5-10210U |
| Processor package size | 46 x 24 mm |
| Processor socket | BGA 1528 |
| Product colour | Black |

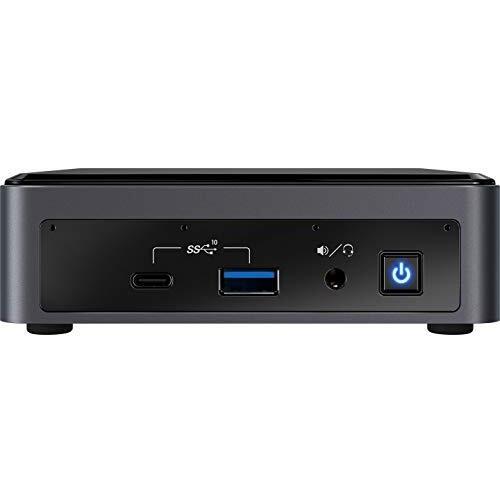

| Product Type | Mini PC |
| Removable memory card slot | SDXC with UHS-II support |
| SSD Capacity | 256 GB |
| SSD interface | PCI Express |
| Status | Launched |
| Storage media | SSD |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| Thermal monitoring technologies | Yes |
| Tjunction | 100 °C |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Trusted Platform Module (TPM) | No |
| USB Version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| Width | 117 mm |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
