| Audio output channels | 7.1 channels |
|---|---|
| BIOS memory size | 64 Mbit |
| BIOS type | EFI |
| Bluetooth | No |
| Built-in wifi | No |
| Compatible processor series | Intel Core i5 |
| Component for | Mini PC |
| DC input voltage | 12-19 DC |
| Depth | 111 mm |
| Displayport Version | 1.2 |
| DisplayPorts quantity | 1 |
| ECC | No |
| ECC supported by processor | No |
| Embedded options available | Yes |
| Enhanced intel speedstep technology | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| Form Factor | UCFF (4" x 4") |
| Graphics adapter | Intel® HD Graphics 5500 |
| Graphics output | 2x mDP, 1x eDP |
| HDD size | 2.5" |
| Height | 48.7 mm |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel Fast Memory Access | Yes |
| Intel FDI Technology | Yes |
| Intel flex memory access | Yes |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Launch date | Q1'15 |
| Linux operating systems supported | Yes |
| Market segment | DT |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Memory voltage | 1.35 V |
| Motherboard chipset family | Intel |
| Motherboard form factor | UCFF |
| Number of DIMM slots | 2 |
| On-board graphics adapter | Yes |
| Parallel processing technology support | Not supported |
| PC Health Monitoring | Voltage,Temperature |
| PCI Express configurations | M.2 slot with PCIe X2 lanes + HS Custom Solutions Header with PCIe x4 lanes |
| Power source type | ATX,DC |
| Processor frequency | 2.3 GHz |
| Processor model | i5-5300U |
| Processor socket | BGA 1168 |
| Product family | Intel NUC |

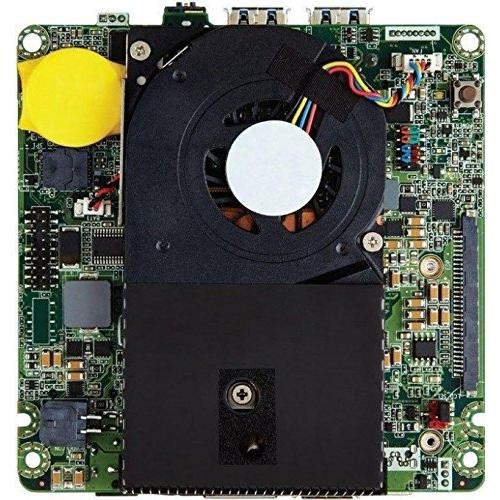

| Product name | Intel NUC Board NUC5i5MYBE |
| Product series | Intel NUC board |
| Product Type | Desktop Board |
| Quick installation guide | Yes |
| RoHS compliance | Yes |
| Status | Launched |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3L-SDRAM |
| Supported storage drive interfaces | Serial ATA III |
| Thermal monitoring technologies | Yes |
| USB 2.0 ports quantity | 6 |
| USB Version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Wi-Fi | Yes |
