| Audio output channels | 7.1 channels |
|---|---|
| BIOS type | EEPROM |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Bus Type | DMI |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Cabling technology | 10/100/1000Base-T(X) |
| Card reader integrated | Yes |
| Certification | IEC, UL, EN, CAN/CSA-C22.2, CISPR 22, FCC, ICES-003, EN, VCCI V3, KN, CNS, WEEE |
| Chassis type | Nettop |
| Compatible memory cards | SDXC |
| Compatible operating systems | Windows 10, 64-bit* |
| DC input voltage | 12-19 DC |
| DC-in jack | Yes |
| Depth | 111 mm |
| Discrete graphics adapter model | Not available |
| Display included | No |
| DVI port | No |
| ECC | No |
| ECC supported by processor | No |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Execute disable bit | Yes |
| Form Factor | UCFF (4" x 4") |
| FSB Parity | No |
| Graphics output | VGA (HDB15); HDMI 1.4b |
| HDD size | 2.5" |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| Height | 51.6 mm |
| Idle states | Yes |
| Integrated 4G WiMAX | No |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel enhanced halt state | Yes |
| Intel Fast Memory Access | No |
| Intel FDI Technology | No |
| Intel flex memory access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel rapid storage technology | No |
| Intel secure boot | Yes |
| Intel smart connect technology | No |
| Intel smart connect technology version | 0.00 |
| Intel trusted execution technology | No |
| Internal memory | 2 GB |
| Internal memory type | DDR3L-SDRAM |
| Keyboard included | No |
| Maximum internal memory | 8 GB |
| Maximum number of PCI Express lanes | 4 |
| Memory channels | Dual-channel |
| Memory clock speed | 1600 MHz |
| Microphone in | No |
| Motherboard form factor | UCFF |
| Mouse included | No |
| On-board graphics adapter | Yes |
| On-board graphics adapter base frequency | 400 MHz |
| On-board graphics adapter burst frequency | 700 MHz |
| On-board graphics adapter DirectX version | Yes |
| On-board graphics adapter family | Intel® HD Graphics |
| Operating system installed | Windows 10 Home |
| Optical drive type | No |
| PCI Express configurations | 1x2,1x4,2x2,2x1,4x1 |
| PCI Express slots version | 2.0 |
| Power supply | 65 W |
| Power supply input voltage | 19 V |
| Processor ARK ID | 87261 |
| Processor boost frequency | 2.4 GHz |
| Processor code | SR29E |
| Processor codename | Braswell |
| Processor family | Intel® Pentium® |
| Processor frequency | 1.6 GHz |
| Processor manufacturer | Intel |
| Processor model | N3700 |
| Processor operating modes | 64-bit |
| Processor series | Intel® Pentium N3000 Series for Mobile |
| Processor socket | BGA 1170 |
| Product family | Intel NUC |
| Product series | Intel NUC kit |

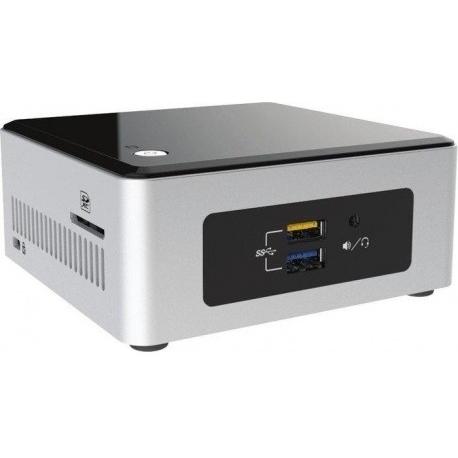

| Product Type | Mini PC |
| RoHS compliance | Yes |
| S/PDIF out port | Yes |
| Status | Discontinued |
| Stepping | C0 |
| Storage media | Flash |
| Thermal monitoring technologies | Yes |
| Tjunction | 90 °C |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Total storage capacity | 32 GB |
| UART | Yes |
| VESA mounting | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11g,Wi-Fi 5 (802.11ac),802.11b,Wi-Fi 4 (802.11n) |
| Width | 115 mm |
