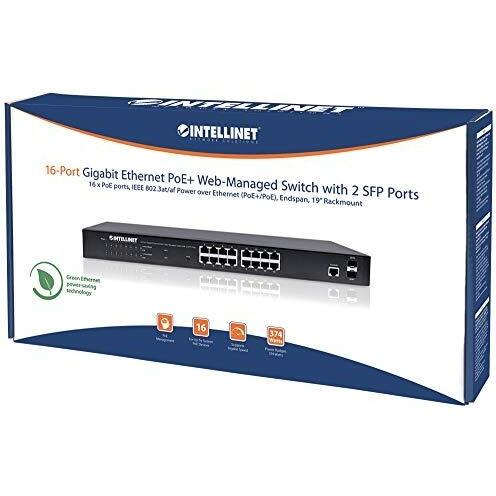

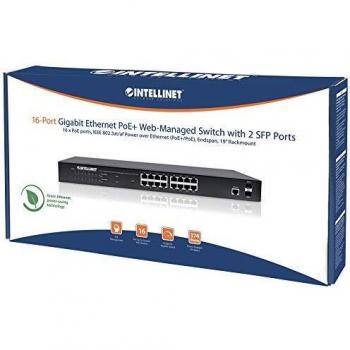

Intellinet IEEE 802.3at/af Power over Ethernet Compliant Switch

407.73 GBP

A sleek 1U managed switch with 16 Gigabit PoE+ RJ45 ports and two SFP slots delivers up to 374 W, supports VLAN tagging, link aggregation, jumbo frames, and web‑based control for efficient network management.

Brand: Intellinet
Model: 561198
MPN: I-SWHUB POE-198
SKU: 561198
Sponsored  This site contains affiliate links for which we may receive compensation. More information
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 16
Broadcast storm control Yes
Buffer size 512 KB
Cable types supported Cat3,Cat4,Cat5,Cat5e
Cables included AC
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Depth 208 mm
Flow control support Yes
Form Factor 1U
Forwarding Rate 1.488 Mpps
Full Duplex Yes
Height 44 mm
Housing material Metal
Jumbo frames 9000
Jumbo frames support Yes
LED indicators Activity,Link,PoE,Power
Link aggregation Yes
MAC address table 8000 entries
Manual Yes
Noise level 45 dB
Number of fans 2 fan(s)
Port mirroring Yes
Quick start guide Yes
Rack mount kit Yes
Rack mounting Yes
Rate limiting Yes
Security algorithms SNMP,SNMPv3,SSH-2
Spanning Tree Protocol Yes
Store-and-forward Yes
Switch type Managed
Switching capacity 36 Gbit/s
Virtual LAN features Tagged VLAN,Port-based VLAN
VLAN support Yes
Web-based management Yes
Weight 2.5 kg
Width 440 mm
