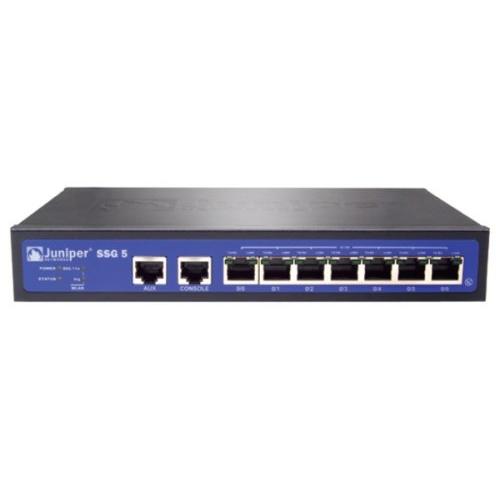

Juniper SSG 5-SB-M Secure Services Gateway

The Juniper SSG 5 Secure Services Gateway offers 90 Mbit/s firewall throughput and 40 Mbit/s VPN on 25 tunnels, with 7 wired 10/100 Mbps ports, 128 MB RAM, and support for BGP, OSPF, RIP, SNMP, HTTPS, and SSH authentication.

Brand: Juniper Networks
Model: SSG-5-SB-M
MPN: SSG-5-SB-M
SKU: SSG-5-SB-M
Sponsored  This site contains affiliate links for which we may receive compensation. More information
Authentication method SSH, RADIUS, X.509, SSH2, LDAP
Certification CSA, CB, FCC B, CE A, A-Tick, VCCI B
Compliance industry standards IEEE 802.1Q, IEEE 802.1x, X.509
Concurrent connections 8000
Connectivity technology Wired
Data link protocols Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, FRF.15, FRF.16
Firewall throughput 90 Mbit/s
Heat dissipation 122.8 BTU/h
I/O ports 7 x 10Base-T/100Base-TX
Interface RS232C
Internal memory 128 MB
Management protocols NetBEUI/NetBIOS, L2TP, IPSec, PPPoE
Maximum data transfer rate 100 Mbit/s
Mean time between failures 354780 h
Networking features 10Base-T/100Base-TX
Operating relative humidity 10 - 90 %
Power requirements 100 - 240 VAC
Routing protocols BGP,OSPF,RIP-1,RIP-2
Security algorithms DES,MD5,SHA-1
VPN throughput 40 Mbit/s
VPN tunnels quantity 25
