| Architecture | Gemini Lake |
|---|---|

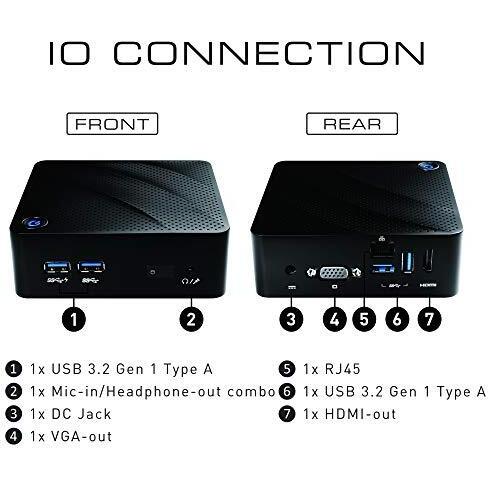

| Back Panel | 1 x D-Sub (VGA) 1 x HDMI 1 x RJ-45 2 x USB 3.1 Gen1 Type-A |
| Base GPU Speed | 200 MHz |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Built-in processor | Yes |
| Burst frequency | 2.7 GHz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Case form factor | ITX |
| Case type | SFF |
| Chassis type | 0.45L sized PC |
| Chipset | System-on-Chip |
| Chipset manufacturer | Intel |
| Clock speed | 1.1 GHz |
| Colours | Black |

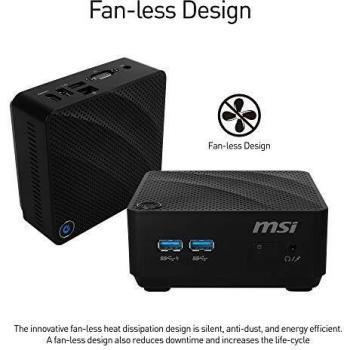

| Cooling type | Passive |
| CPU Cache | 4MB |
| CPU Cores | Quad Core |
| CPU Family | Intel Pentium Silver |
| CPU Included | Yes |
| CPU Model | N5000 |
| CPU Socket | Integrated CPU |
| CPU Type | Intel Pentium |
| DC-in jack | Yes |

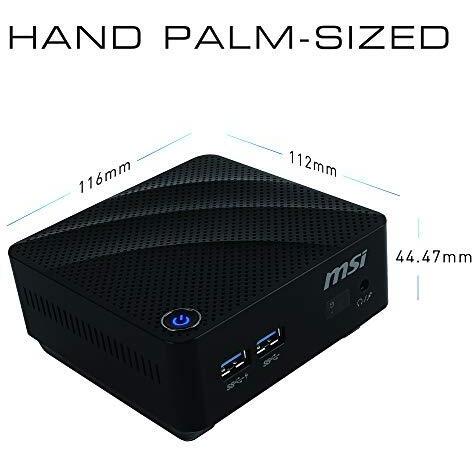

| Depth | 112 mm |
| Discrete GPU | No |

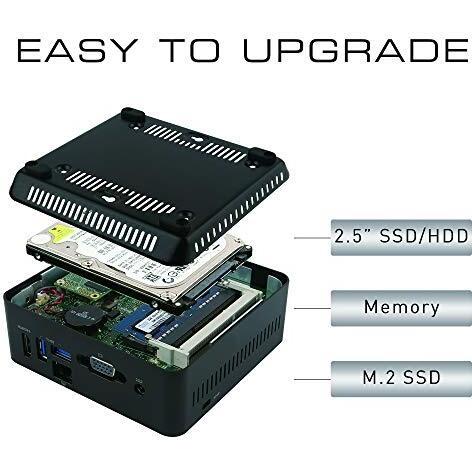

| Drive bays | 1 x 2.5" Internal |
| Edition | Cubi N 8GL |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| Expansion slots | 1 x M.2, 22-80, PCIe Gen3/SATA |
| Form factor | mini PC |
| Front panel | 1 x Headphone/Mic Combo 1 x USB 3.1 Gen1 Type-A 1 x USB 3.1 Gen1 Type-A (w/ Quick Charging) |
| GPU Tensor Cores | N/A |
| Graphics chipset | Intel UHD 605 |
| Graphics interface | On-board |
| HDMI ports quantity | 1 |
| Idle states | Yes |
| Integrated Graphics Supported | Yes |
| Intel 64 | Yes |
| Keyboard / mouse included | No |
| Keyboard included | No |
| LAN controller | Realtek RTL8111H |
| Manufacturing process | 14 nm |
| Maximum GPU Speed | 750 MHz |
| Maximum memory capacity | 8GB (1x8GB) |
| Maximum TDP | 6 W |
| Memory channel | Single |
| Memory included | No |
| Memory slots type | SO-DIMM |
| Motherboard form factor | Bespoke/Custom |
| Mouse included | No |
| Multi-GPU Configuration | No |
| Network Chip | 1 x Intel 802.11ac WiFi Module 1 x Realtek RTL8111H (Gigabit LAN) |
| Network Interface Type | 802.11ac WiFi LAN Wired Gigabit LAN (10/100/1000) |
| Number of storage drives supported | 2 |
| On-board Audio Type | 2.0 |
| On-board graphics adapter | Yes |
| On-board/Integrated Graphics | Yes |
| On/off switch | Yes |
| Operating system included | No |
| Optical drive | None |
| Optical drive type | No |
| PCI Express configurations | 1x4+1x2,2x1+1x2+1x2,4x1 |
| Power | 40 W |
| Power supply included | Yes |
| Power supply type | External AC adapter |
| Processor socket | BGA 1090 |
| Product Type | Mini PC barebone |
| Remote control included | No |
| SATA III Support | Yes |
| SATA Supported | Yes |
| Storage drive sizes supported | 2.5" |
| Supported memory clock speeds | 2400 MHz |
| Supported storage drive types | HDD & SSD |
| Thermal monitoring technologies | Yes |
| Unlocked CPU | No |
| VESA Mountable | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 116 mm |
| Windows operating systems supported | Windows 10 |
