V7 Advanced Tilt Wall Bracket - WM3T175-1E

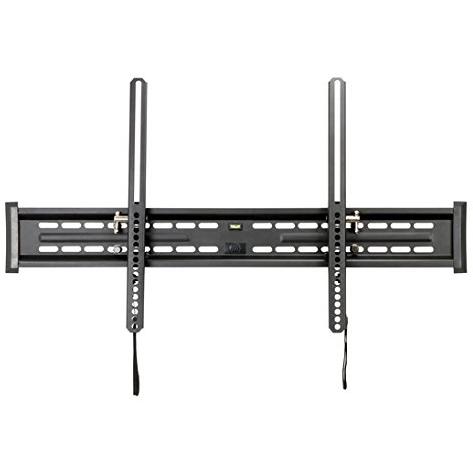

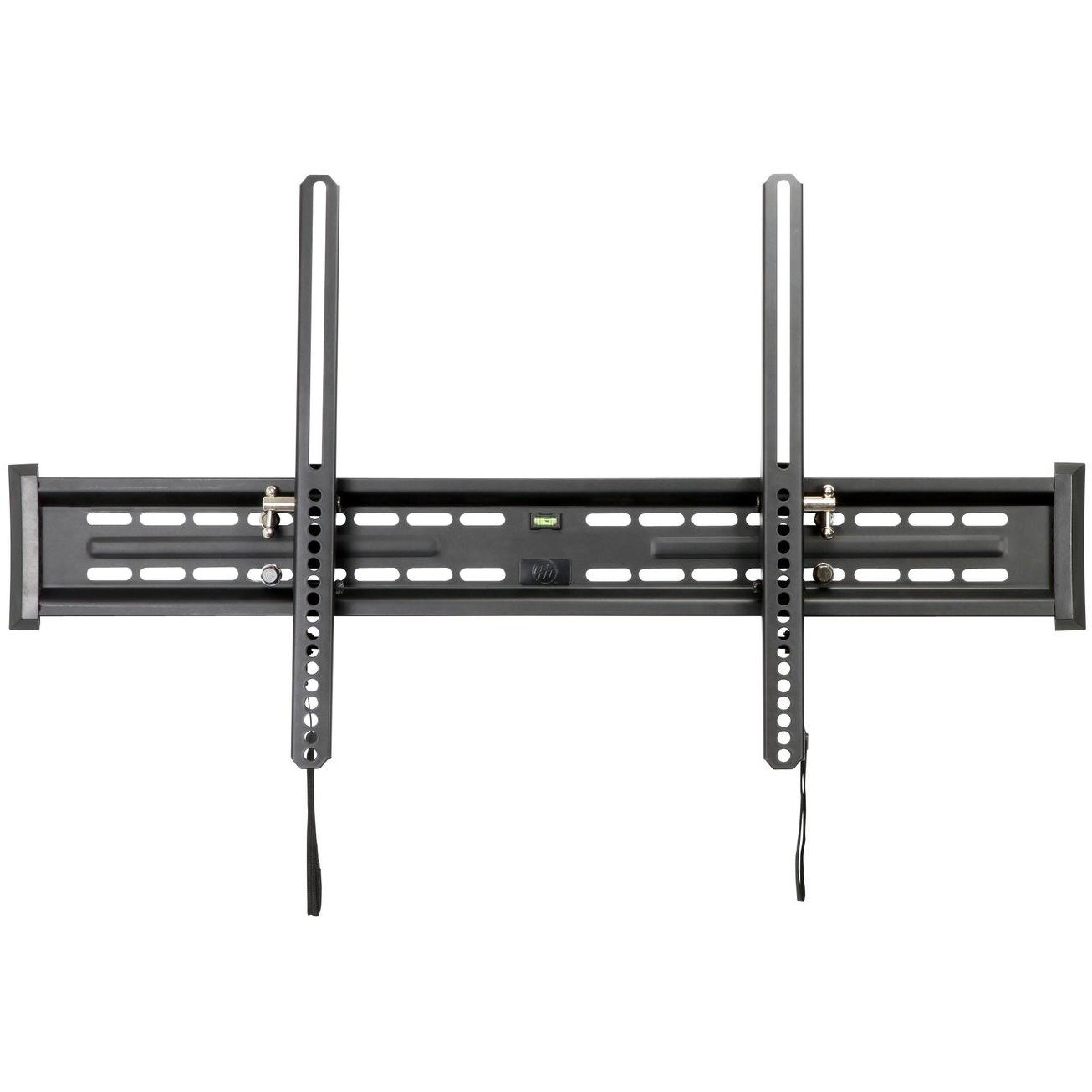

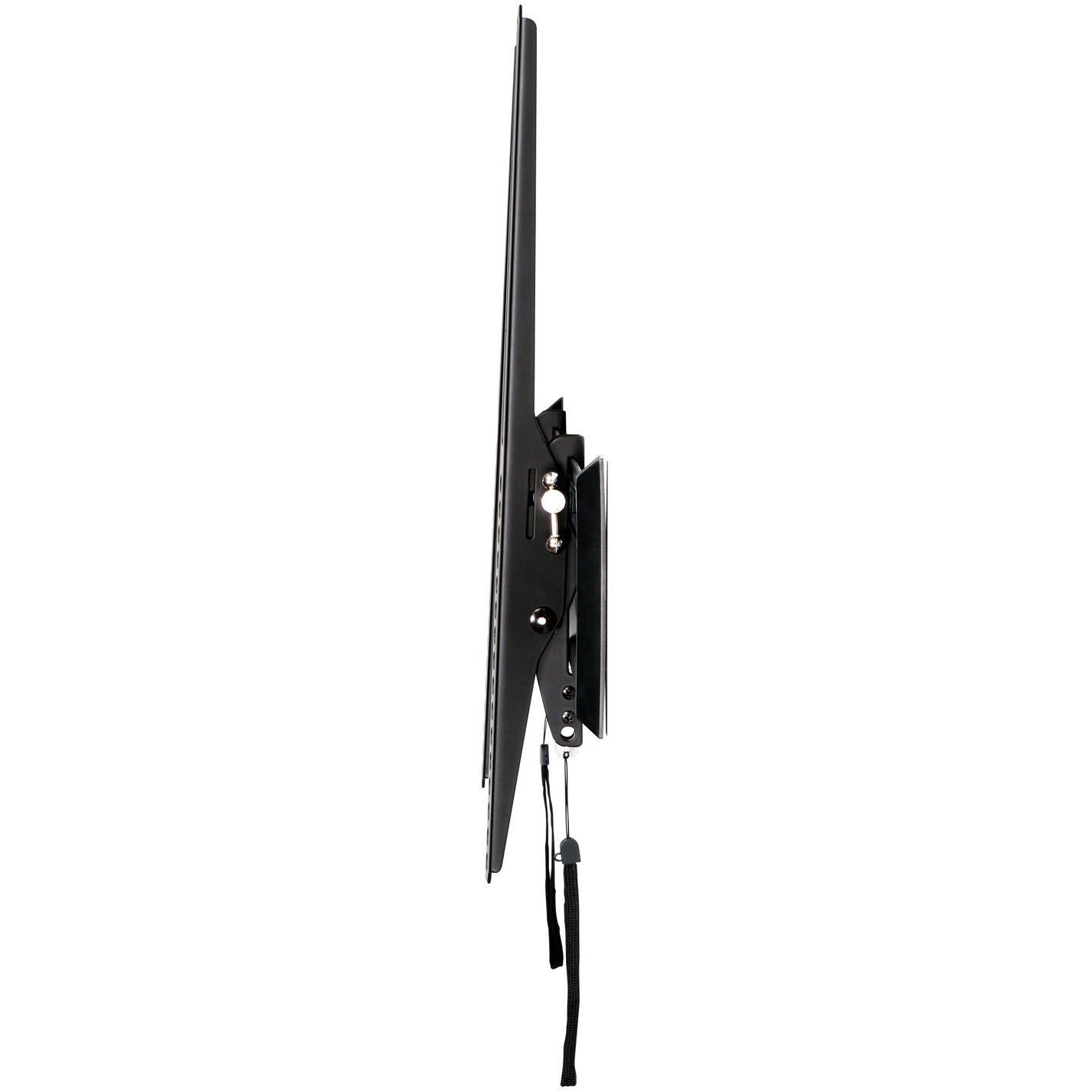

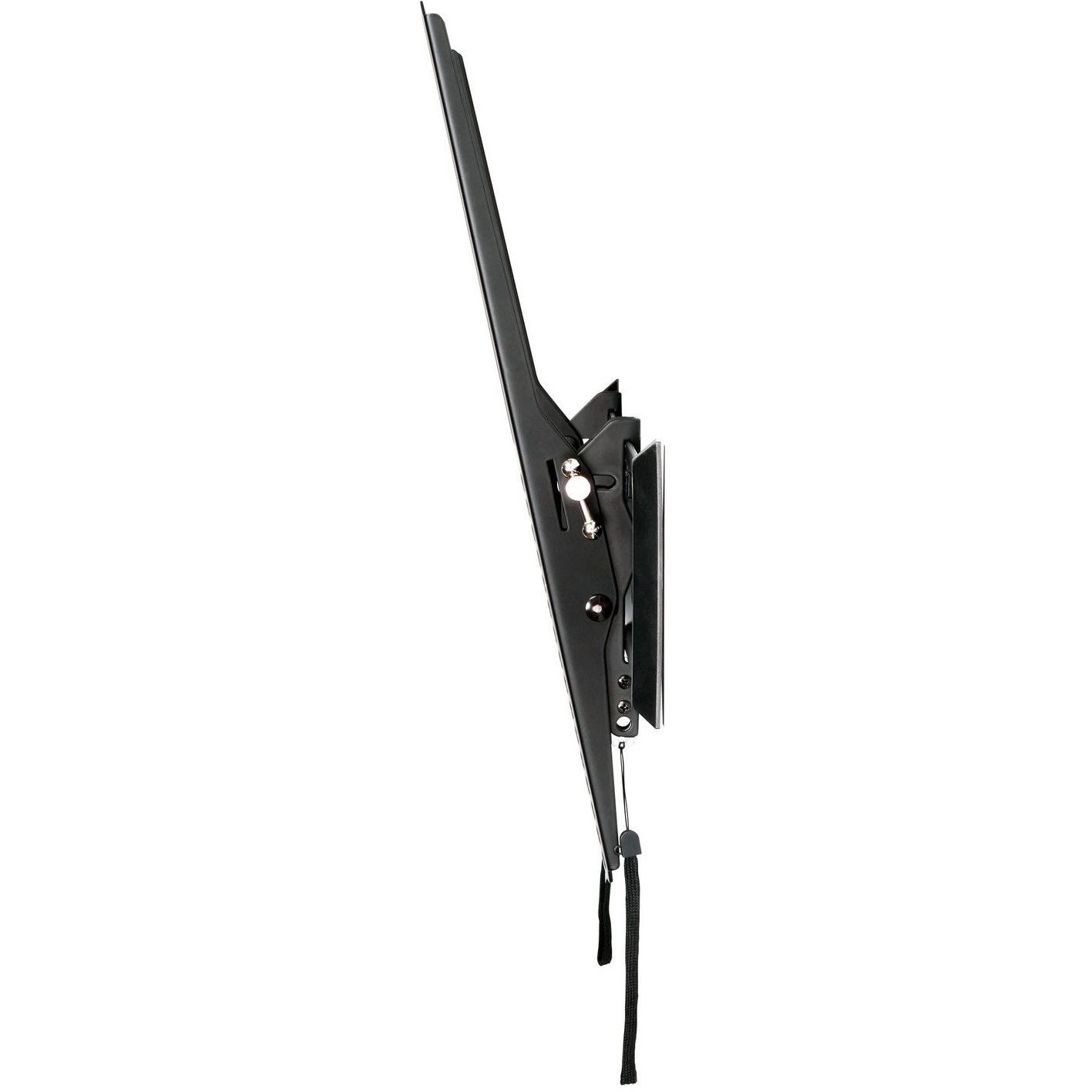

A robust black steel wall bracket supports 32‑90” TVs up to 80 kg with VESA 100–600 mm, tilting from –5° to +15°. UL certified and RoHS compliant, it comes ready with a complete mounting kit and user guide.

Brand: V7
Model: WM3T175-1N
MPN: WM3T175-1N
SKU: WM3T175-1N
Sponsored  This site contains affiliate links for which we may receive compensation. More information
Certification UL
Colour Black
Displays Supported 1
Distance to the wall 1.77" (4.5 cm)
Housing material Steel
Manual Yes
Maximum screen size compatibility 90"
Maximum VESA mount 15.7 x 23.6" (400 x 600 mm)
Maximum weight capacity 176.4 lbs (80 kg)
Minimum screen size compatibility 81.3 cm (32")
Minimum VESA mount 3.94 x 3.94" (100 x 100 mm)
Mounting kit Yes
Mounting type Wall
Package depth 143 mm
Package Height 64 mm
Package width 823 mm
Panel mounting interface 100 x 100,100 x 200,200 x 200,200 x 300,300 x 400,300 x 300,400 x 400,400 x 600
RoHS compliance Yes
Suitable for TV
Tilt angle range -5 - 15°
