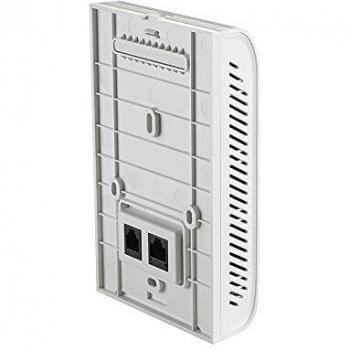

DAP-2230 Wireless N Access Point

999999.99 USD

Deploy the D-Link DAP‑2230 PoE access point to extend 2.4 GHz coverage with dual 3 dBi internal antennas, WPA/WPA2 encryption, up to 300 Mbps throughput, and a wall‑mount kit for quick setup.

Brand: D-Link
Model: DAP-2230
MPN: DAP-2230
Sponsored  This site contains affiliate links for which we may receive compensation. More information
2.4 ghz Yes
2.4 GHz Yes
5 ghz No
Antenna gain level maximum 3 dBi
Antennas quantity 2
Bandwidth 2.4 GHz
Certification FCC, IC, CE, UL, Wi-Fi® Certified
Colour White
Data transfer rate max 300 Mbit/s
DC-in jack No
Depth 129 mm
Detachable antenna(s) No
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN ports 1
Frequency band 2.4 - 2.4835
Height 29 mm
Input voltage 12 V
Integrated antenna Yes
Internal No
LED indicators Power, Status
MAC address filtering Yes
Maximum power consumption 5.76 W
Mounting kit Yes
Networking standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3u
Operating relative humidity 0 - 90%
Package depth 158 mm
Package Height 59 mm
Package width 144 mm
Pallet length 120 cm
Pallet width 110 cm
Power over Ethernet PoE Yes
Quality of Service support Yes
Security algorithms 64-bit WEP,128-bit WEP,WPA,WPA2
Storage relative humidity 5 - 95%
Web-based management Yes
Weight 213.6 g
