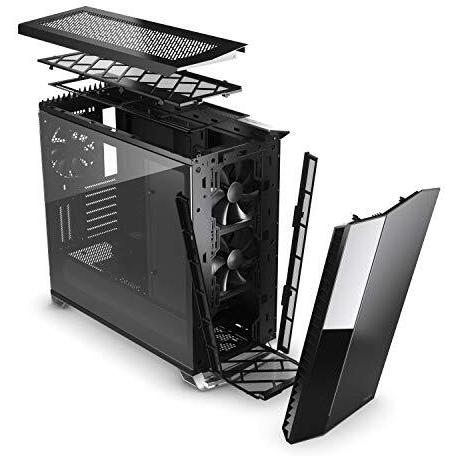

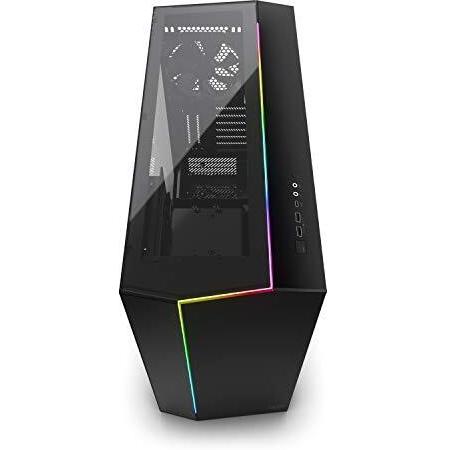

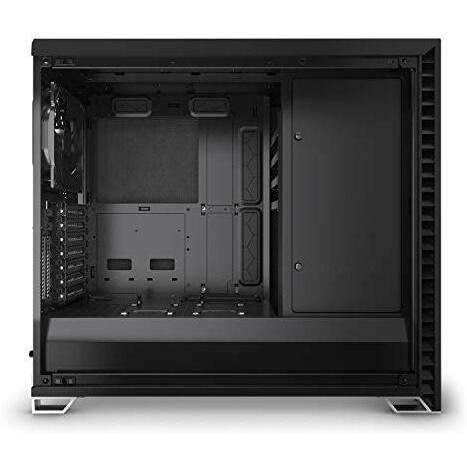

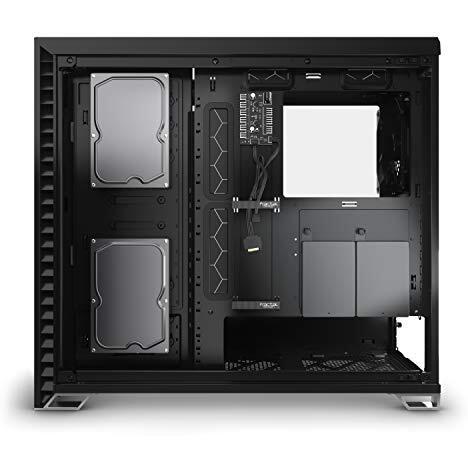

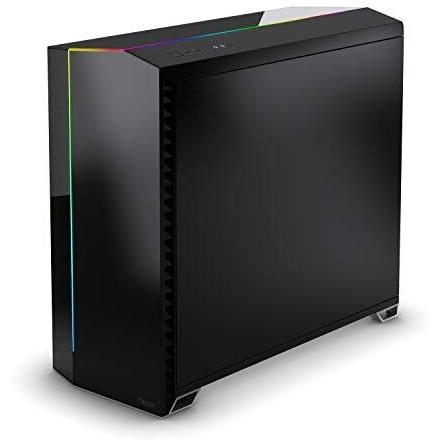

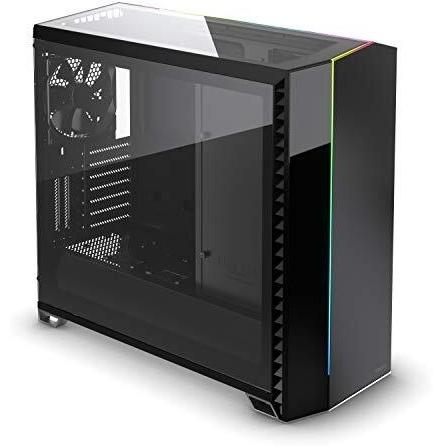

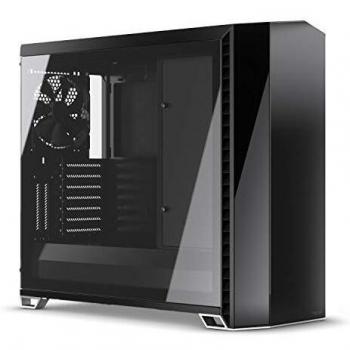

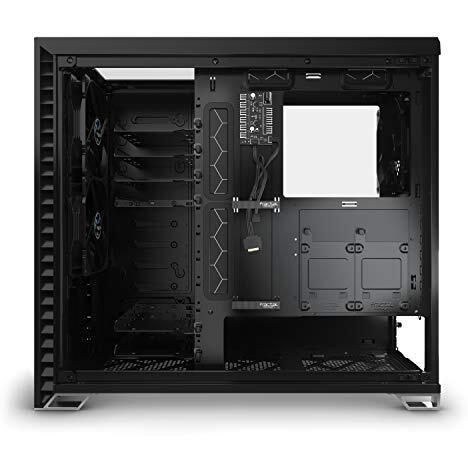

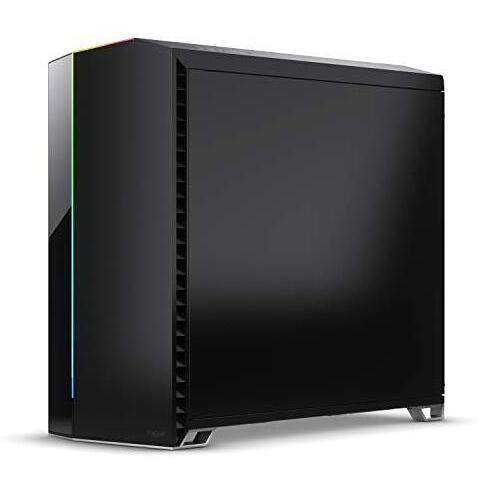

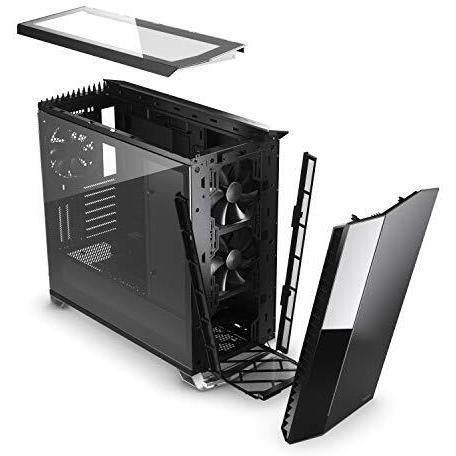

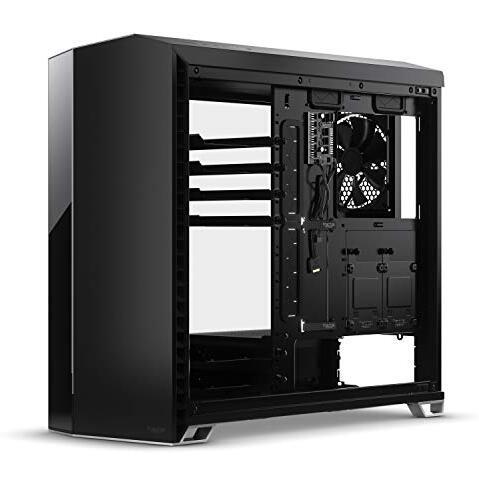

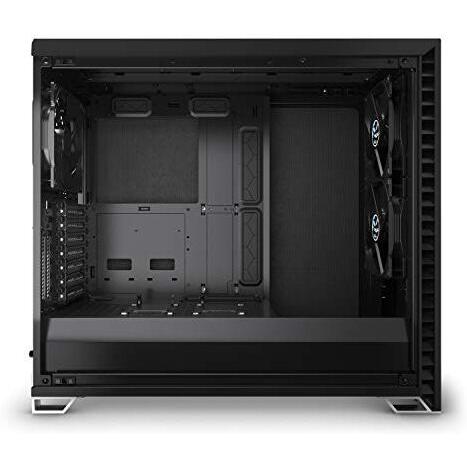

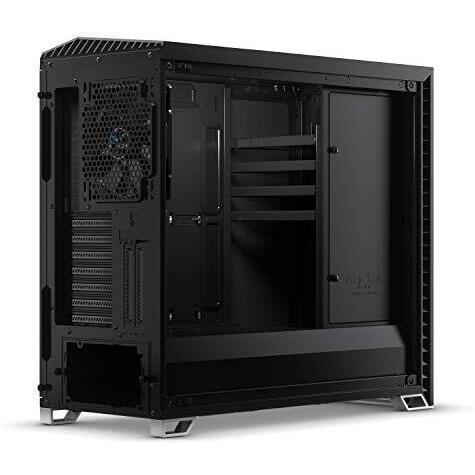

Fractal Design Vector RS PSU Shroud Modular Interior Case

Brand: Fractal Design
MPN: FD-C-VER1A-01
SKU: FD-C-VER1A-01
Sponsored  This site contains affiliate links for which we may receive compensation. More information
Anti-dust filter Yes
Audio input Yes
Audio output Yes
Bottom fans diameters supported 120,140 mm
Bottom Radiator Compatibility 1 x 120/140/240/280mm
Cable management Yes
Cable Routing Space 23mm mm
Case Edition Vector RS
Case form factor Mid Tower
Colours Blackout Black
Depth 552 mm
Dimensions 233 x 498 x 552 (WxHxD mm)
Drive bays 4 x 2.5" Internal 11 x 2.5"/ 3.5" Internal
Dust Filters Bottom Front PSU Top
Expansion slots 7 + 2 vertical
Fan Bays 9 x 120/140mm
Fans Included 3 x 140mm
Form Factor Tower
Front fans installed 2x 140 mm
Front Ports 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio
Front Radiator Compatibility 1 x 120/140/240/280/360mm
GPU Max Length 440 mm with front fan installed
Harmonized System HS code 84733080
Height 498 mm
Illumination Yes
Illumination colour Multi
Illumination location Front, Top
LED Lighting Yes
LED Lighting Colour RGB
LED Lighting Emitters Front Panel Addressable RGB LED Lighting
Manual Yes
Max CPU Cooler Height 185 mm
Max PSU Length 300 mm
Maximum graphics card length 44 cm
Maximum psu length 30 cm
Motherboard Compatibility EATX (up to 285 mm wide) / ATX / mATX / ITX
Number of 2.5 Bays 2
Number of 3.5" Bays 6
Number of expansion slots 9
On/off button Yes
Package depth 568 mm
Package Height 673 mm
Package width 328 mm
Panel I/O 1 x Headphone Out 1 x Mic In 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB 3.1 Gen2 Type-C
Power supply included No
Power supply location Bottom
PSU Included No
PSU Mounting Location Bottom Mount, Rear
PSU Support ATX
Rear fans installed 1x 140 mm
Rear Radiator Compatibility 1 x 120mm
Reset button Yes
Screws included Yes
Side window Yes
Standard Expansion Slots 7
Supported HDD sizes 3.5"
Supported motherboard form factors ATX, EATX, ITX, micro ATX
Top Radiator Compatibility 1 x 120/140/240/280/360/420mm
Type PC
USB 3.2 Gen 2 3.1 Gen 2 Type-C 1
Warranty 24 months
Weight 12.64 kg (Approx)
Width 233 mm
Window Configuration 1 x Front 1 x Main Side 1 x Top
Window Construction Tempered Glass
Windows Yes
