| Audio | HD 2/4/5.1/7.1-channel with 6 x audio jacks |
|---|---|
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 199 mm |
| Dimensions | ATX form factor (30.5 x 19.9 cm) |
| DVI-D ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| HDCP | Yes |
| Included accessories | 4 x SATA data cables, I/O chassis backplate, user manual, drivers DVD |
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Memory channels | Dual-channel |
| Memory slots | 4 (max 64 GB) |
| Memory slots type | DIMM |

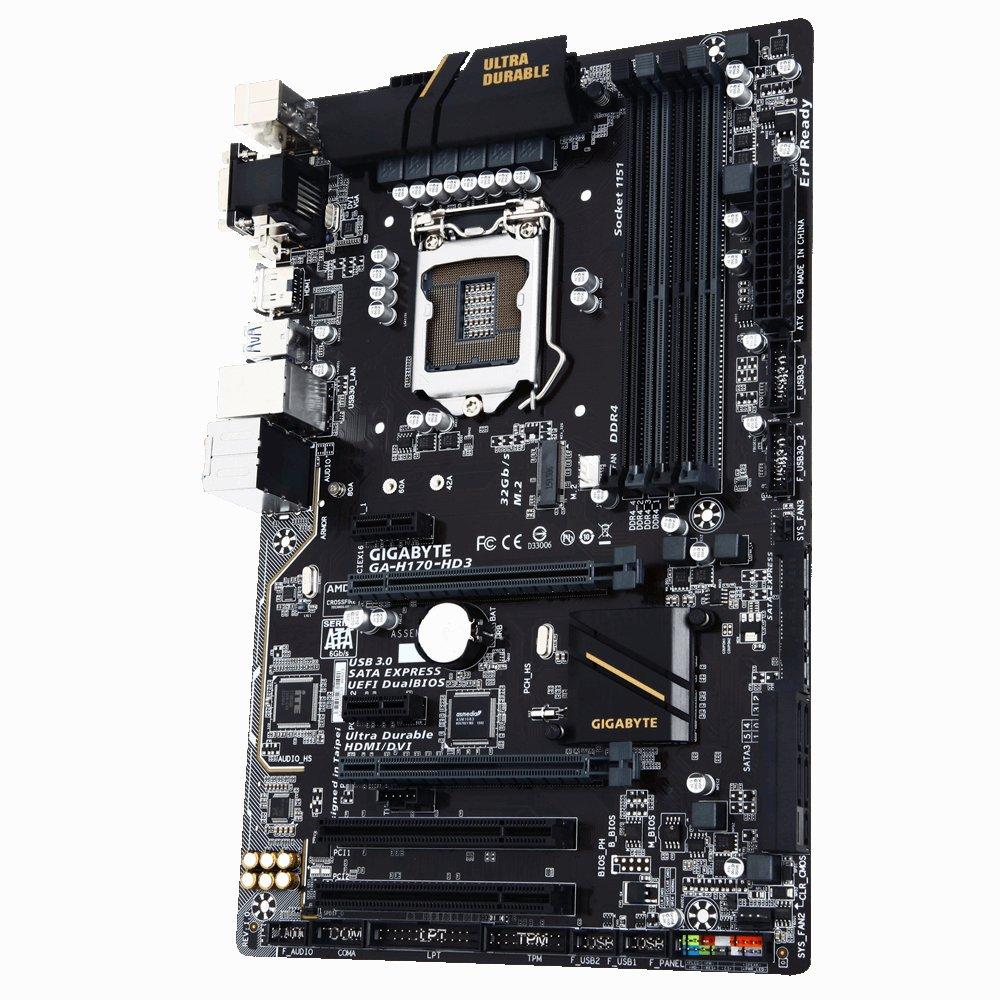

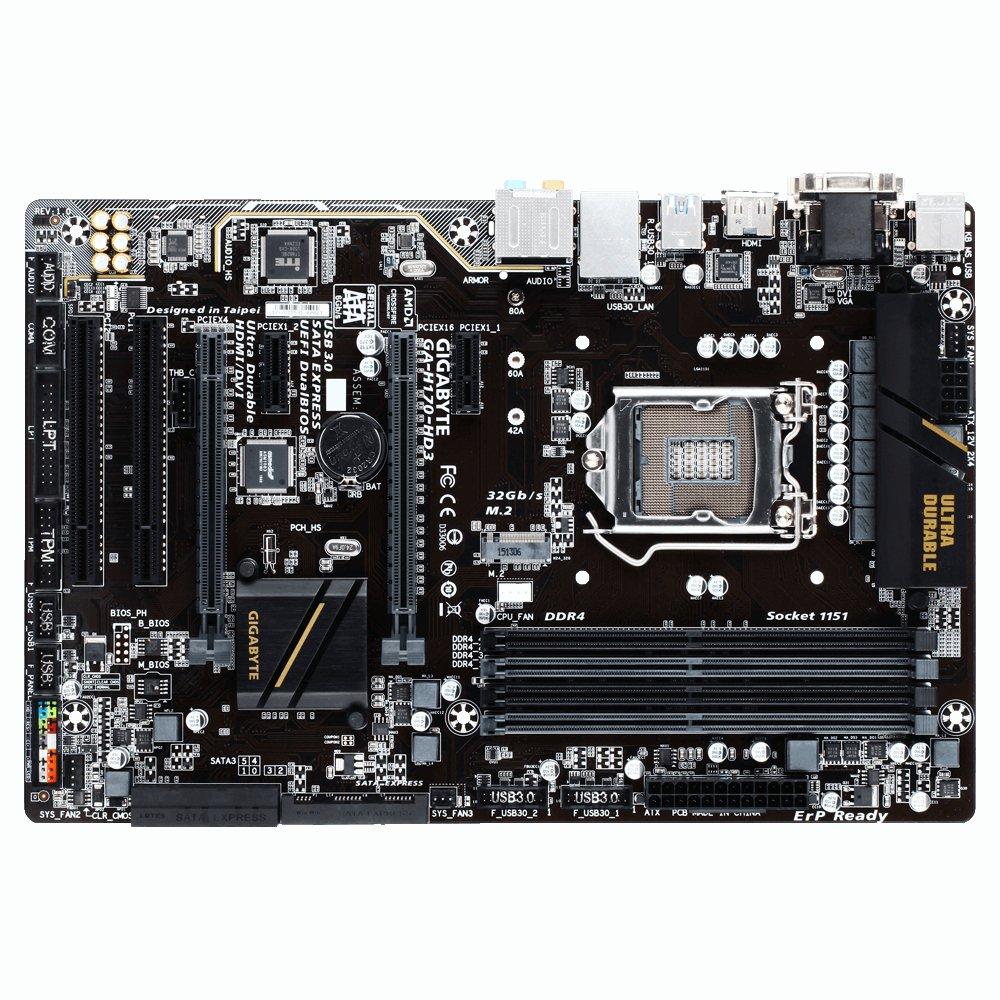

| Motherboard | Gigabyte GA-H170-HD3 |
| Motherboard chipset | Intel® H170 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of SATA III connectors | 6 |
| On-board graphics adapter | No |
| Parallel processing technology support | 2-Way CrossFireX |
| Processor socket | LGA 1151 (Socket H4) |
| RAID levels | 0,1,5,10 |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 2133 MHz |
| Warranty | 36 months |
| Width | 305 mm |
