| Architecture | Coffee Lake |
|---|---|
| Box | No |
| Bus bandwidth | 8 |
| Bus Type | DMI3 |
| Bus type units | GT/s |
| Cache | 4 MB |
| Clock speed | 3.7 GHz |
| Component for | Server/workstation |

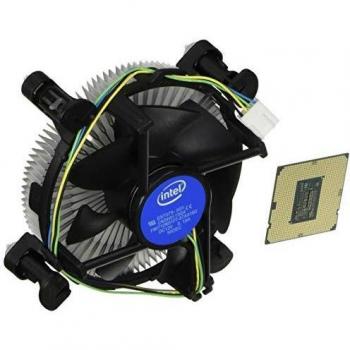

| Cooler included | Yes |
| CPU Brand | Intel |
| CPU Cores | Dual Core |
| CPU Model | G5400 |
| CPU Socket | Socket 1151 |
| CPU Type | Intel Pentium Gold |
| Discrete graphics adapter | No |
| ECC | Yes |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Enhanced intel speedstep technology | Yes |
| Execute disable bit | Yes |
| Form factor | CPU |
| Graphics chipset | Intel UHD 610 |
| Harmonized System HS code | 8542310001 |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel enhanced halt state | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel optane memory | No |
| Intel Optane Memory Ready | Yes |
| Intel Software Guard Extensions | Yes |
| Intel Stable Image Platform Program | No |
| Intel Stable Image Platform Program SIPP version | 0.00 |
| Intel trusted execution technology | No |
| Intel TSX-NI | No |
| Intel Virtualization Technology | Yes |
| Intel Virtualization Technology for Directed I/O | Yes |
| Intel VT-x with Extended Page Tables | Yes |
| Intel® AES New instructions | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices | Yes |
| Intel® Hyper Threading Technology | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® vPro™ Technology | No |
| L3 cache | *See Intel Smart Cache* |
| Launch date | Q2'18 |
| Manufacturing process | 14 nm |
| Market segment | DT |
| Maximum CPU configuration | 1 |
| Maximum graphics adapter memory | 64 GB |
| Maximum internal memory | 65536 MB |
| Maximum number of PCI Express lanes | 16 |
| Maximum resolution & refresh rate (DisplayPort) | 4096x2304@60Hz |
| Maximum TDP | 54W |
| Memory bandwidth supported by processor | 37.5 GB/s |
| Memory channels | Dual-channel |
| Memory channels supported by processor | Dual |
| Memory clock speeds supported by processor | 2400 MHz |
| On-board graphics adapter | Yes |
| On-board graphics adapter 4K support | Yes |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter dynamic frequency | 1050 MHz |
| On-board graphics adapter ID | 0x3E90/x93 |
| On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter outputs supported | DisplayPort,Embedded DisplayPort (eDP),HDMI |
| On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (HDMI) | 24 Hz |
| Package depth | 116 mm |
| Package Height | 101 mm |
| Package type | Retail |
| Package width | 70 mm |
| PCI Express CEM Revision | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Processor ARK ID | 129951 |
| Processor brand name | Intel Pentium Gold (2017)Intel Pentium Gold Processor (2017) |
| Processor cache type | Smart Cache |
| Processor cores | 2 |
| Processor family | Intel® Pentium® |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Product family | Intel Pentium Processor |
| Product Type | Processor |
| QPI Speed | N/A |
| Status | Launched |
| Supported instruction sets | SSE4.1,SSE4.2 |
| Thermal monitoring technologies | Yes |
| Thermal solution specification | PCG 2015C |
