| Addressable RGB | Yes |
|---|---|
| AMD CrossFire Support | Not Supported |
| Audio | Realtek ALC1220 7.1 HD Audio |
| Bluetooth | Yes |
| Board dimensions | 170 x 170 mm |
| Chipset | Intel Z490 |
| Chipset manufacturer | Intel |

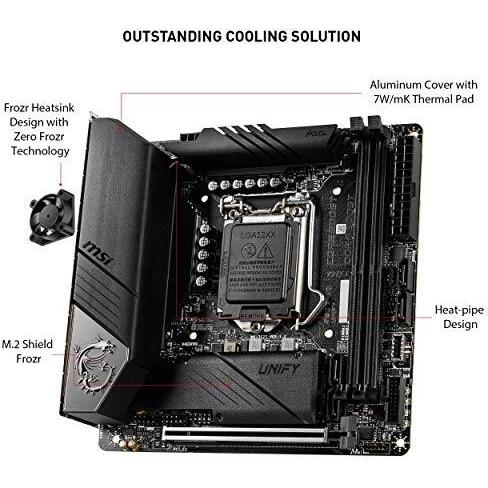

| Cooling | Passive Heatsinks |
| CPU Socket | 1200 |
| Displayport connection | Yes |
| DVI connection | No |
| Expansion slots | 1 x M.2, 22-80, PCIe Gen3 1 x M.2, 22-80, PCIe Gen3/SATA 1 x PCIe 3.0 x16 |
| Firewire | Yes |
| Form factor | Mini-ITX |
| Graphics chipset | None |
| HDMI connection | Yes |
| Integrated Graphics | Requires Processor Graphics or Discrete GPU |
| Integrated Graphics Supported | Yes |
| Internal USB 3.0 Header | Yes |
| M.2 Support | Yes |
| Maximum Installed Processors | 0 (1) |
| Maximum memory capacity | 64GB |
| Memory channel | Dual (2) |
| Memory type | DDR4 |
| Memory Type ECC | Non-ECC |
| Memory Type R/U | UDIMM (Unbuffered) |
| Motherboard form factor | ITX |
| Motherboard Power Connectors | 8-Pin |
| Multi GPU Support | No |
| Network Chip | 1 x 802.11ax WiFi + BT5 1 x Realtek (2.5GbE LAN) |
| Network Interface Type | 802.11ax WiFi LAN Wired 2.5 Gigabit LAN (10/100/1000/2500) |
| Number of PCI Express Slots | 1 slot(s) |
| On-board Audio Type | 7.1 |
| On-Board Graphics Connectors | DisplayPort HDMI |
| On-board RGB Control | MSI Mystic Sync |
| Primary GPU Interface | PCIe 3.0 (x16) |
| QPI Speed | N/A |
| RAID Support via | Intel® SATA RAID 0/1/10/5 |
| Raid supported | Yes |
| RGB Header Type | 3-Pin ARGB |
| SATA III Support | Yes |
| SATA Support | SATA3 / M.2 |
| SATA Supported | Yes |
| Thunderbolt | Yes |
| USB 3.0 Support | Yes |
| USB 3.1 Support | Yes |
| USB Ports | 5 port(s) |
| VGA connection | No |
| Water Cooled | No |
| WiFi Speed | 2400 Mbps |
| Wireless Network | Yes |
