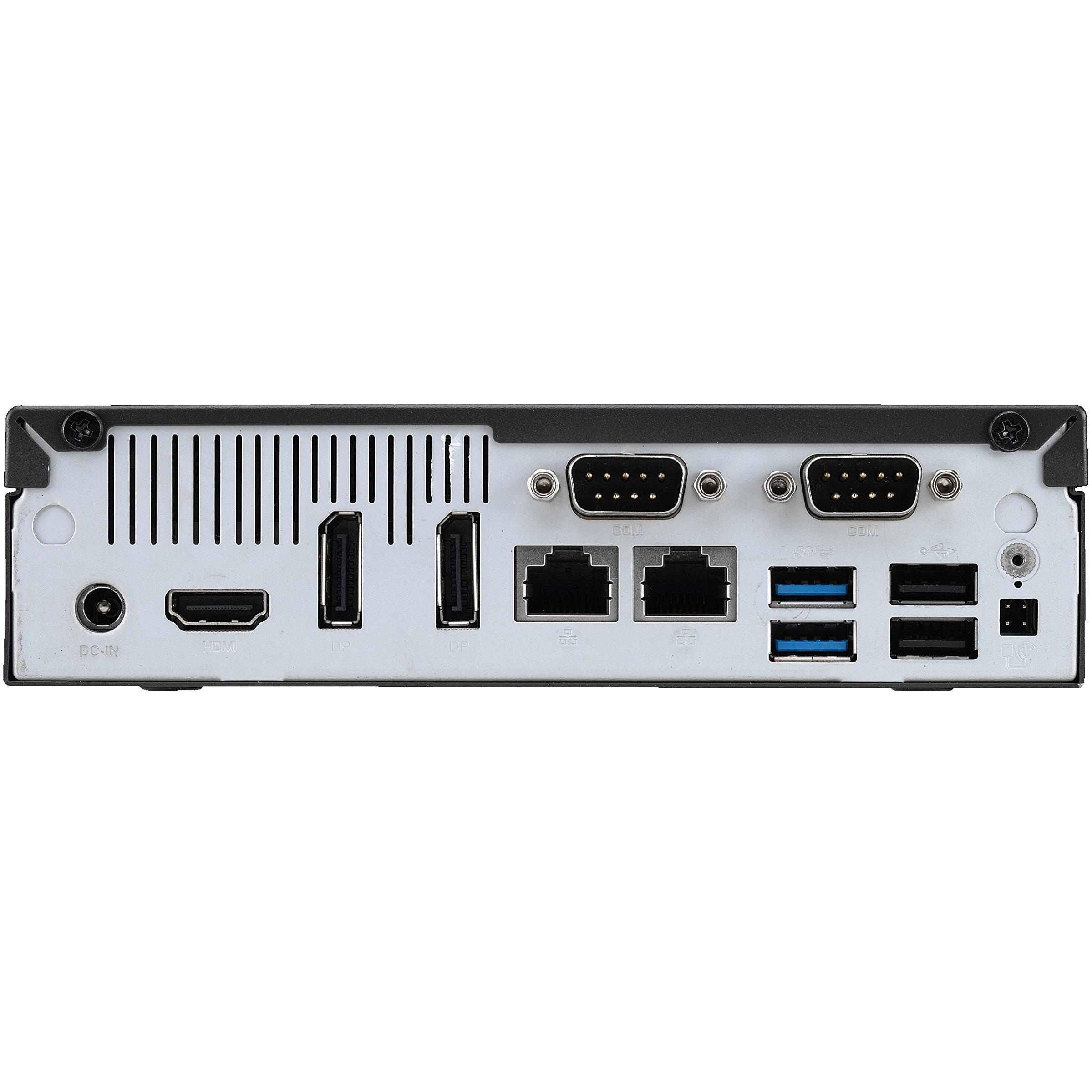

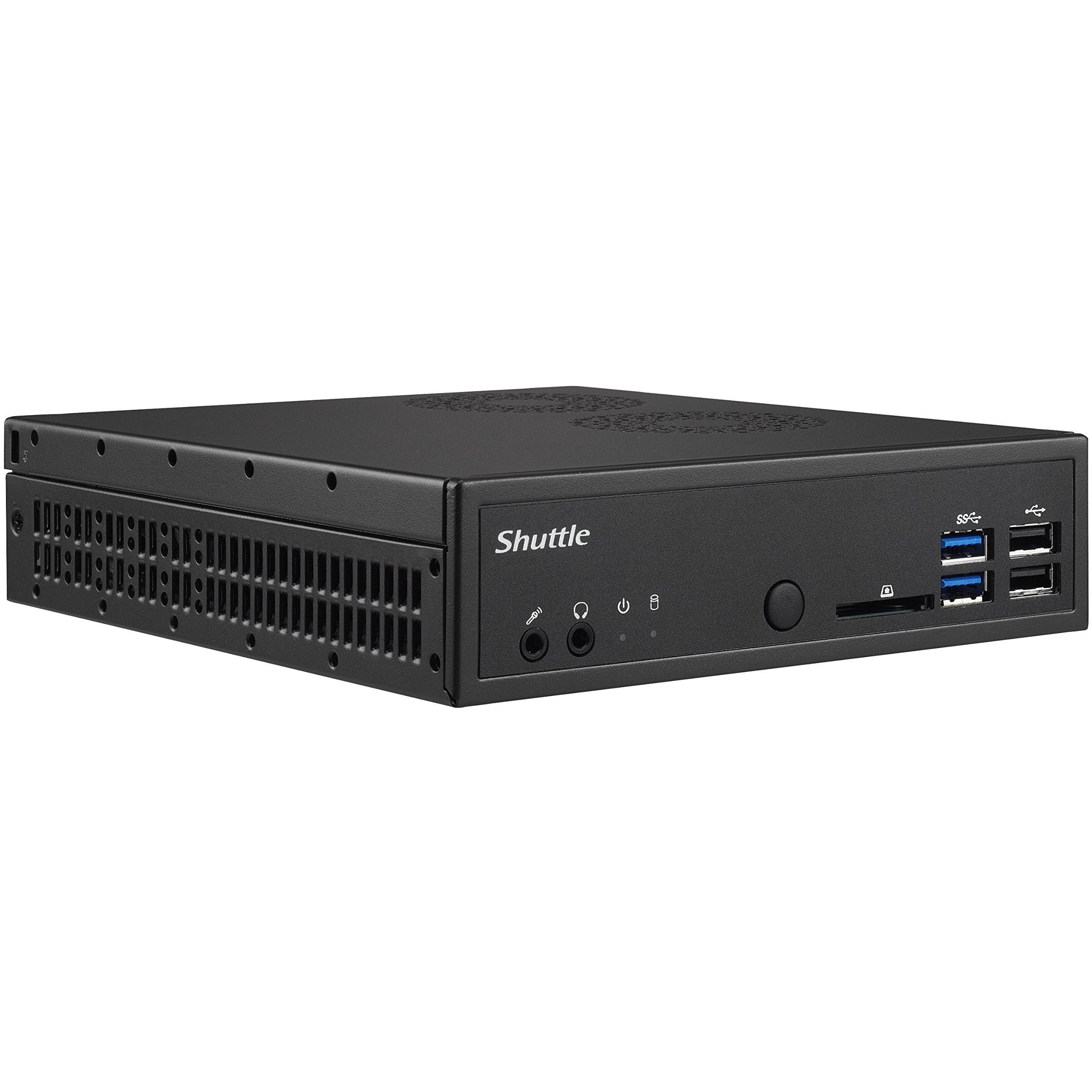

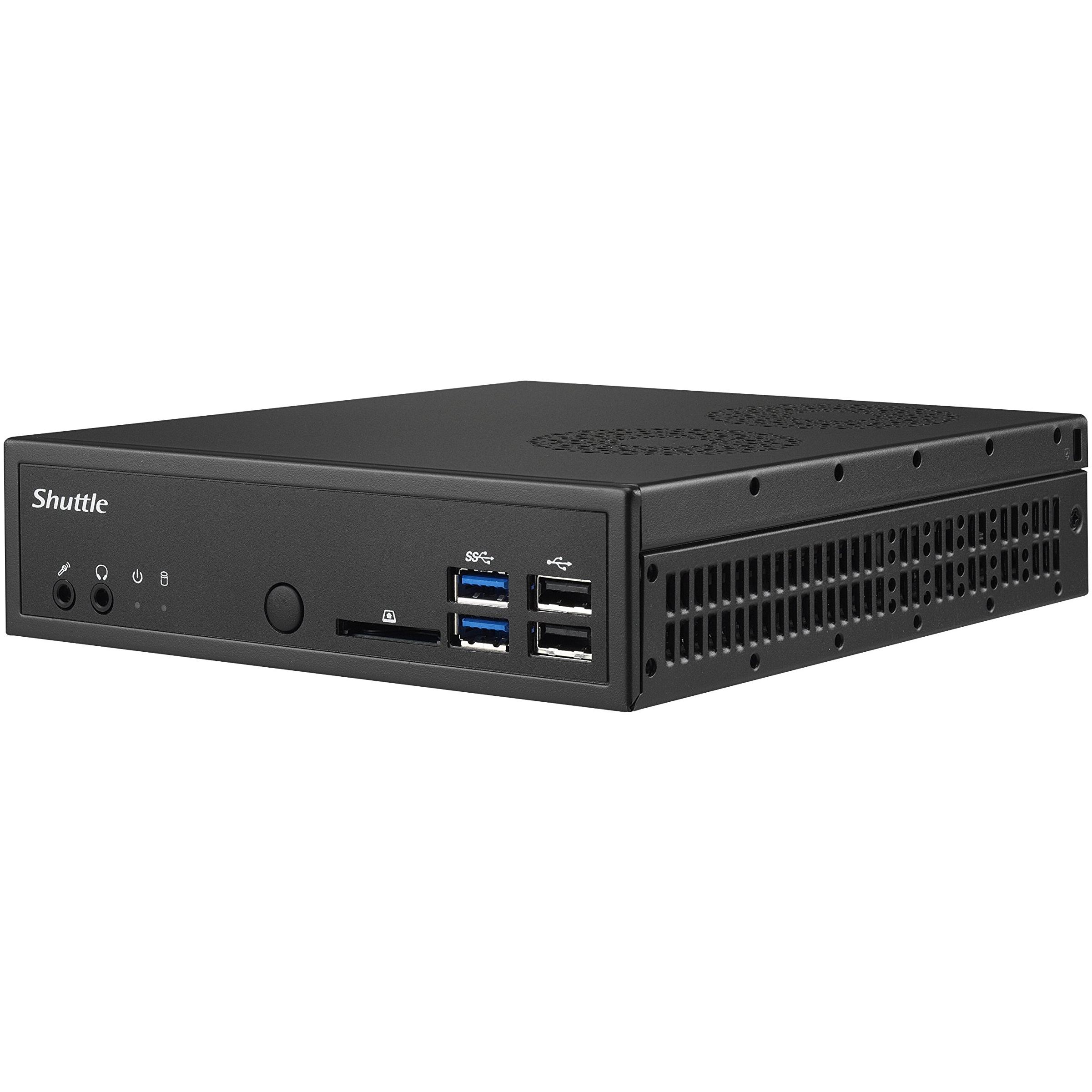

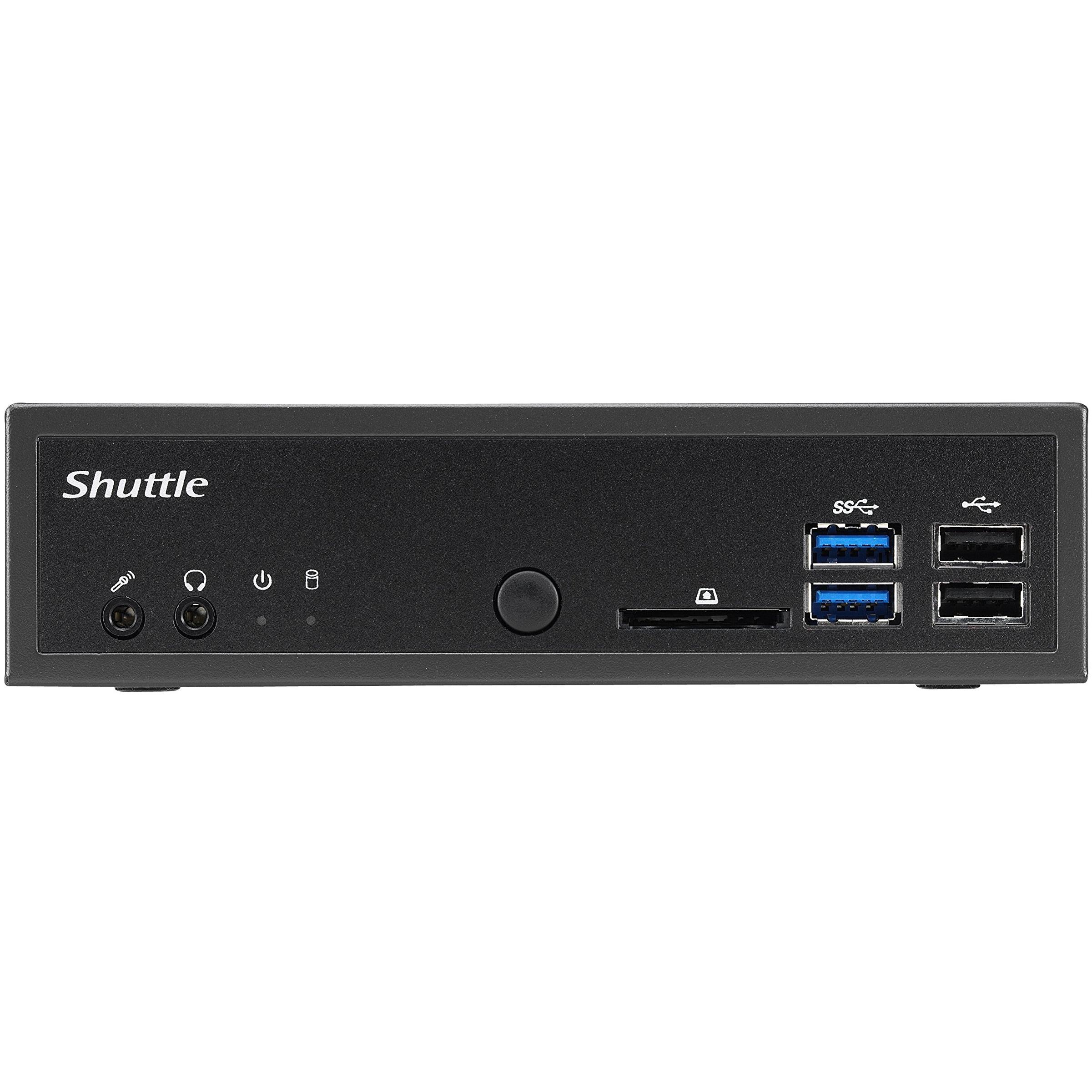

SHUTTLE XPC Slim DQ170 Mini Barebone PC

Sleek black mini‑barebone with Intel Q170 LGA1151, dual SO‑DIMM slots up to 32 GB DDR3L, one 2.5″ SATA III bay, HDMI and two DisplayPort outputs, active heatpipe cooling, 90 W external AC, VESA mountable.

Brand: SHUTTLE
Model: DQ170
MPN: DQ170
Sponsored  This site contains affiliate links for which we may receive compensation. More information
AC adapter included Yes
AC adapter output current 4.74 A
AC adapter output voltage 19 V
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Audio output channels 5.1 channels
Audio system HD
BIOS memory size 64 Mbit
BIOS type UEFI AMI
Built-in processor No
Cable Lock Slot Yes
Cable lock slot type Kensington
Card reader integrated Yes
Certification FCC, CE, BSMI, C-Tick, RoHS, ErP
Chassis type Nettop
Colour Black
Compatible memory cards SD
Cooling type Active
DC-in jack Yes
Depth 7.48" (190 mm)
Displayports quantity 2
Energy Star certified Yes
Ethernet LAN Yes
Graphics adapter family Intel
HDMI 1
Height 1.69" (43 mm)
LED indicators HDD,Power
Linux operating systems supported Yes
Maximum internal memory 32 GB
Memory channels Dual
Memory slots type SO-DIMM
Memory voltage 1.35 V
Microphone in Yes
On-board graphics adapter Yes
Operating relative humidity 10 - 90%
Operating system installed No
Panel mounting interface 100 x 75 mm
Power supply 90 W
Power Supply Type External AC adapter
Processor socket LGA 1151 (Socket H4)
Safety ETL, CB, BSMI
Storage drive interface Serial ATA III
Storage drive sizes supported 2.5"
Supported memory clock speeds 1333,1600 MHz
Supported memory types DDR3L-SDRAM
Supported storage drive types HDD,SSD
USB 2.0 ports quantity 4
VESA Mounting Yes
Weight 2.87 lbs (1.3 kg)
Wi-Fi No
Width 6.5" (165 mm)
