Shuttle XPС slim DH02U5 BGA 1356 2.50 GHz i5-7200U Black Barebone System | Kaicus USA

Shuttle XPС slim DH02U5 BGA 1356 2.50 GHz i5-7200U Black Barebone System

808.00 USD

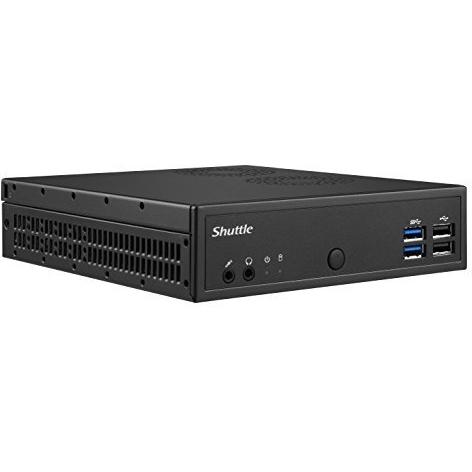

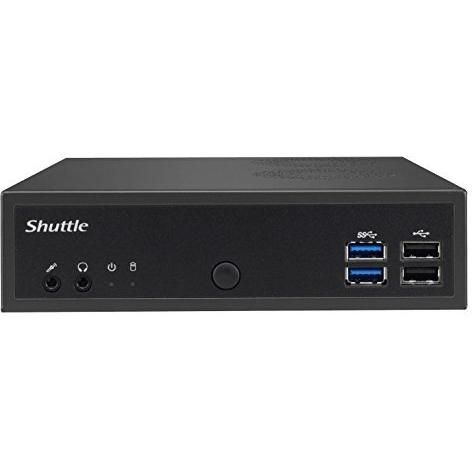

A slim black Shuttle XPC Slim DH02U5 houses an i5‑7200U at 2.50 GHz with Turbo Boost to 3.10 GHz, a GTX 1050 (4 GB GDDR5), dual SO‑DIMM slots up to 32 GB, two M.2 slots, four HDMI 2.0b outputs, Wi‑Fi, Ethernet and an external 120 W AC adapter.

Brand: SHUTTLE
Model: DH02U5
MPN: DH02U5
Sponsored  This site contains affiliate links for which we may receive compensation. More information
AC adapter included Yes
AC adapter output current 6.32 A
AC adapter output voltage 19 V
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Audio system Realtek ALC 662
BIOS memory size 64 Mbit
BIOS type AMI
Built-in processor Yes
Cable Lock Slot Yes
Cable lock slot type Kensington
Certification CE, FCC, BSMI, VCCI, RCM, RoHS, ErP
Colour Black
DC-in jack Yes
Depth 7.48" (190 mm)
Displays Supported 4
Drivers included Yes
Embedded options available No
Energy Star certified Yes
Enhanced intel speedstep technology Yes
Ethernet LAN Yes
Ethernet LAN ports 1
Execute disable bit Yes
Graphics adapter GeForce GTX 1050
Graphics adapter family NVIDIA
Graphics adapter memory type GDDR5
HDMI version 2.0b
Height 1.69" (43 mm)
Housing material Metal
Idle states Yes
Intel 64 Yes
Intel clear video technology Yes
Intel flex memory access Yes
Intel Stable Image Platform Program No
Intel trusted execution technology No
Intel TSX-NI No
Intel Virtualization Technology for Directed I/O Yes
Intel VT-x with Extended Page Tables Yes
Intel® AES New instructions Yes
Intel® Clear Video HD Technology Yes
Intel® Hyper Threading Technology Yes
Intel® Insider™ Yes
Intel® InTru™ 3D Technology Yes
Intel® My WiFi Technology Yes
Intel® OS Guard Yes
Intel® Quick Sync Video Technology Yes
Intel® Secure Key Yes
Intel® Small Business Advantage Yes
Intel® Smart Response Technology Yes
Intel® Wireless Display Yes
L2 cache 0.5 MB
L3 cache 3 MB
LED indicators HDD,Power
Linux operating systems supported Yes
Manufacturer Shuttle, Inc
Maximum graphics adapter memory 4000 MB
Maximum internal memory 32 GB
Maximum resolution 4096 x 2160 pixels
Memory channels Dual
Memory slots type SO-DIMM
Memory voltage 1.2 V
Microphone in Yes
Non-ECC Yes
Number of M.2 M slots 2
On-board graphics adapter Yes
On/off switch Yes
Operating relative humidity 10 - 90%
Panel mounting interface 100 x 75 mm
PCI Express slots version 3.0
Power cord included Yes
Power supply 120 W
Power Supply Type External AC adapter
Processor boost frequency 3.10 GHz
Processor frequency 2.50 GHz
Processor lithography 14 nm
Processor model i5-7200U
Processor socket BGA 1356
Quick start guide Yes
Safety CB, BSMI, ETL
Storage drive sizes supported 2.5"
Supported memory clock speeds 2133 MHz
Supported storage drive types HDD,SSD
Thermal design power 15 W
Thermal monitoring technologies Yes
Trusted platform module Yes
VESA Mounting Yes
Weight 2.27 lbs (1.03 kg)
Wi-Fi Yes
Width 6.5" (165 mm)
Windows operating systems supported Windows 10
